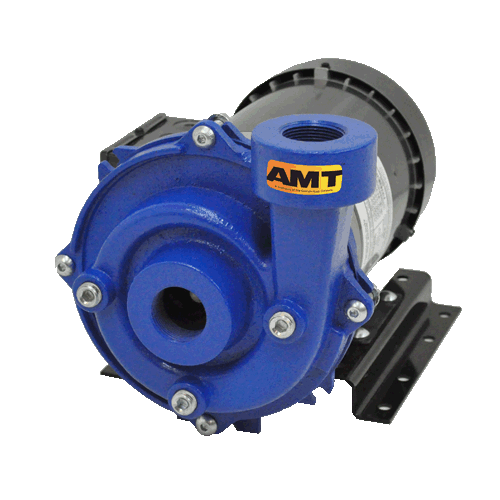

AMT Pumps 07ES05C-1P Straight Centrifugal Pump (1/2 HP, 1 Phase, 115-208/230V)

AMT Pumps 07ES05C-1P Straight Centrifugal Pump (1/2 HP, 1 Phase, 115-208/230V)

07ES05C-1P

$454.55 USD
$700.00 USD $454.55 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 07ES05C-1P, Straight Centrifugal End Suction Chemical Pump,1/2 HP, 1 PH, 115-208/230 V, 3/4" NPT
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
Features
Cast Iron Construction
EPDM/EPR Mechanical Seal and O-rings
303 Stainless Steel Motor Shaft
NEMA 56J TEFC Single or Three Phase Motors
NEMA Dual Cycle 50/60 Hz Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 45 Increments
Maximum Working Pressure 125 PSI
Maximum Temperature 180 F
Front Drain Plugs
QSPQuick Ship Pump for Many Models

Specifications

Brand
AMT
Catalog Number
07ES05C-1P
Type
Chemical Pumps
Series
Straight Centrifugal End Suction Chemical Pump
Curve
A
HP
1/2
Phase
1
Enclosure
TEFC
Voltage
115-208/230
Full Load Amps
9/5
Suction
3/4" NPT
Discharge
3/4" NPT
Length
13.9"
Width
10.1"
Height
9.9"
Ship Wt. (Lbs.)
47
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
