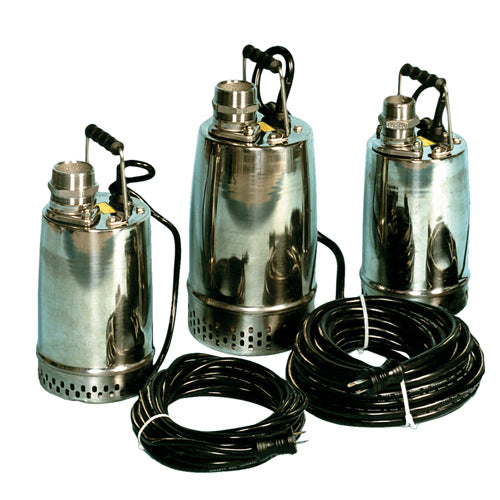

AMT Pumps 02XH5 Stainless Steel Submersible Pump (1/2 HP, 2" Discharge, 115V, 6FLA, 30' Cord, SS Construction, Cast iron impeller)
AMT Pumps 02XH5 Stainless Steel Submersible Pump (1/2 HP, 2" Discharge, 115V, 6FLA, 30' Cord, SS Construction, Cast iron impeller)
SKU:02XH5
Regular price
$566.23 USD
Regular price
$872.00 USD
Sale price
$566.23 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 2XH5, Submersible Pumps,Stainless Steel/ Cast Iron,2 DIS, 1/2 HP, 115 VAC, Submersible Pump Description/Type
| Applications |
| Slim-design, light weight CSA listed submersibles feature top discharge as well as cast-iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury-free float switch is available. Float Switches: The mercury free liquid level control has a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet. |
| Features |
| Submersible Pump Standard Features |
| Light Weight Slim Design |
| Motors Protected by Overload or Thermal Breaker |
| Lower Seal - Silicon-Carbide, Viton; Upper Seal - Carbon Ceramic, Viton |
| Oil Lubricated Seals |
| Cast Iron Impeller, Top & Pump End |
| 304 Stainless Steel Casing, Motor Housing, Shaft and Hardware |
| Long Power Cables:- 1/3 & 1/2 HP is 30 Feet in Length, -1HP is 50 Feet in Length |
| Optional Piggyback Mercury-free Float Switches |
| Nitrile O-rings |
| Max Temperature 104 F |
| *Float Switch NOT INCLUDED - See Below for More Details |
Specifications | |
Brand |
AMT |
Catalog Number |
2XH5 |
Type |
Submersible Pumps |
Basic Construction |
Stainless Steel/ Cast Iron |
| Discharge | 2" |
HP |
1/2 |
Voltage |
115 |
Full Load Amps |
6 |
Cable Length |
30' |
Width |
6.6" |
Height |
14.5" |
Weight |
31 lbs |
Description/Type |
Submersible Pump |
NPT Port Size |
2" |
Housing |
304 Stainless Steel |
Impeller |
Cast Iron |
Full Load Amps |
6 |
Warranty |
1 Year |
Optional Piggyback Float 30 Ft. 16 GA Cord |
Model 55-930 |
Optional Piggyback Float 50 Ft. 14 GA Cord |
Model 55-950 |
Notes |
See Support Documents |
Support Documents (pdf) |
