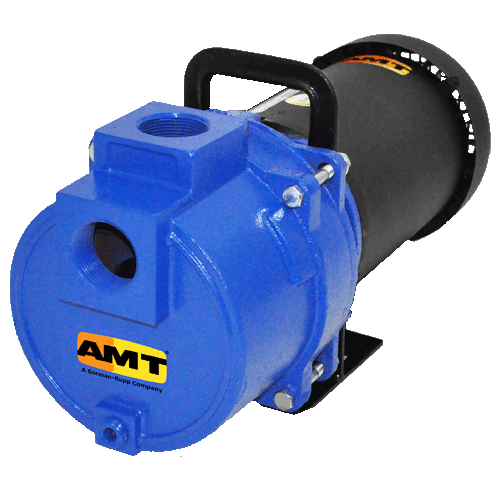

3657-95 AMT 2" NPT Sprinkler Booster Pump (5 HP, 1 Phase, 230 Volt, TEFC Type, Buna-N Seal, 20 FLA)
3657-95 AMT 2" NPT Sprinkler Booster Pump (5 HP, 1 Phase, 230 Volt, TEFC Type, Buna-N Seal, 20 FLA)
[COUNT] shoppers are looking at this right now
No reviews
SKU:3657-95
Regular price
$2,039.33 USD
Regular price
$3,059.00 USD
Sale price
$2,039.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
AMT 3657-95, Self-Priming Sprinkler/Booster Pumps,5 HP, 1 PH, TEFC,230 V, 2" NPT,2" NPT DIS
| Applications | |
| AMT Sprinkler/Booster pumps feature 300 Series Investment cast stainless steel closed impellers for high efficiency and resistance against erosion caused by abrasive particles. All models self-prime to 20 feet. Single stage models feature dual volute design to reduce radial load on motor and a built-in check valve to ensure fast priming after initial liquid is added to the pump. Cast iron construction provides durability and low maintenance. Easy cleanout design includes replaceable dual volute/diffuser and casing o-ring for servicing. Twostage models provide additional pressure in fractional horsepower sizes for multi-sprinkler head applications. Type 21 mechanical seals handle maximum working pressure to 150 PSI. Pumps are available from 3/4 to 7-1/2 HP with Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) motors. | |
| Features | |
| Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impeller | |
| Buna-N Mechanical Seal and O-ring | |
| Removable/Replaceable Volute/Diffuser | |
| Single Stage Models Feature Removable Dual Volute Design | |
| Self-priming to 20 Feet | |
| Maximum Temperature 180 F | |
| Optional Mounting Base for Pumps with JM Motors | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
3657-95
|
|
Type
|
Sprinkler/Booster Pumps
|
|
Series
|
Self-Priming Sprinkler/Booster Pumps
|
|
Curve
|
E
|
|
Construction
|
Cast Iron
|
|
HP
|
5
|
|
PH
|
1
|
|
ENC
|
TEFC
|
|
Voltage @ 60 Hz +
|
230
|
|
SUC
|
2" NPT
|
|
DIS
|
2" NPT
|
|
Ship Wt. (Lbs.)
|
165
|
|
Warranty
|
1 Year
|
