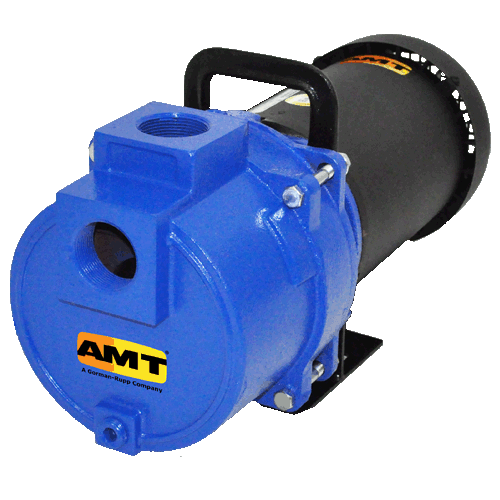

AMT Pump 3655-95, 2" Sprinkler Booster Pump (5 HP, 3 PH, 230/460V)
AMT Pump 3655-95, 2" Sprinkler Booster Pump (5 HP, 3 PH, 230/460V)
SKU:3655-95
Regular price
$1,279.87 USD
Regular price
$1,971.00 USD
Sale price
$1,279.87 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 3655-95, Self-Priming Sprinkler/Booster Pumps,5 HP, 3 PH, TEFC,230/460 V, 2" NPT,2" NPT DIS
| Applications | |
| AMT Sprinkler/Booster pumps feature 300 Series Investment cast stainless steel closed impellers for high efficiency and resistance against erosion caused by abrasive particles. All models self-prime to 20 feet. Single stage models feature dual volute design to reduce radial load on motor and a built-in check valve to ensure fast priming after initial liquid is added to the pump. Cast iron construction provides durability and low maintenance. Easy cleanout design includes replaceable dual volute/diffuser and casing o-ring for servicing. Twostage models provide additional pressure in fractional horsepower sizes for multi-sprinkler head applications. Type 21 mechanical seals handle maximum working pressure to 150 PSI. Pumps are available from 3/4 to 7-1/2 HP with Open Drip Proof (ODP) or Totally Enclosed Fan Cooled (TEFC) motors. | |
| Features | |
| Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impeller | |
| Buna-N Mechanical Seal and O-ring | |
| Removable/Replaceable Volute/Diffuser | |
| Single Stage Models Feature Removable Dual Volute Design | |
| Self-priming to 20 Feet | |
| Maximum Temperature 180 F | |
Specifications | |
Brand |
AMT |
Catalog Number |
3655-95 |
Type |
Sprinkler/Booster Pumps |
Series |
Self-Priming Sprinkler/Booster Pumps |
Curve |
E |
HP |
5 |
PH |
3 |
ENC |
TEFC |
Voltage @ 60 Hz + |
230/460 |
SUC |
2" NPT |
DIS |
2" NPT |
Ship Wt. (Lbs.) |
157 |
Warranty |
1 Year |
Notes |
See Support Douments |
Support Documents (pdf) |
