U.S. Motors

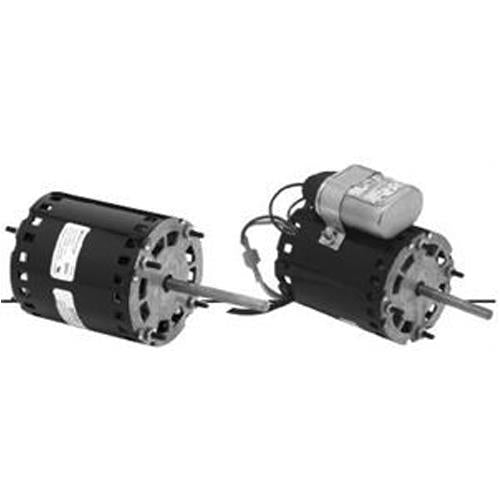

9654 U.S. Motors (1/20 HP, 115/208-230 Volts, 1550 RPM)
9654 U.S. Motors (1/20 HP, 115/208-230 Volts, 1550 RPM)
SKU:9654
Regular price
$116.23 USD
Regular price
Sale price
$116.23 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 9654, HP: 1/20, RPM: 1550, Volts: 115/208-230, Shaft Rotation: CW, Enclosure: TEAO, Diameter: 3.3", OEM Direct Replacement: Krack,
| Applications | |
| Designed to meet manufacturer's requirements for fans & blowers. | |
| Features | |
| Four 8-32 x 3/4 Stud Extensions At Each End | 12 Leads |
| Ball Bearings Have All Angle Thrust System | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
9654 |
HP |
1/20 |
RPM |
1550 |
Volts |
115/208-230 |
Amps |
1.50/0.75 |
Shaft Rotation |
CW |
Shell XI |
3.4 |
Shaft Dia. X N |
0.31 x 1.63 |
Apx. Wt. (lb) |
4 |
Enclosure |
TEAO |
Diameter |
3.3" |
OEM Direct Replacement |
Krack |
Support Documents (pdf) | ||||
| Product Literature | ||||
