Little Giant

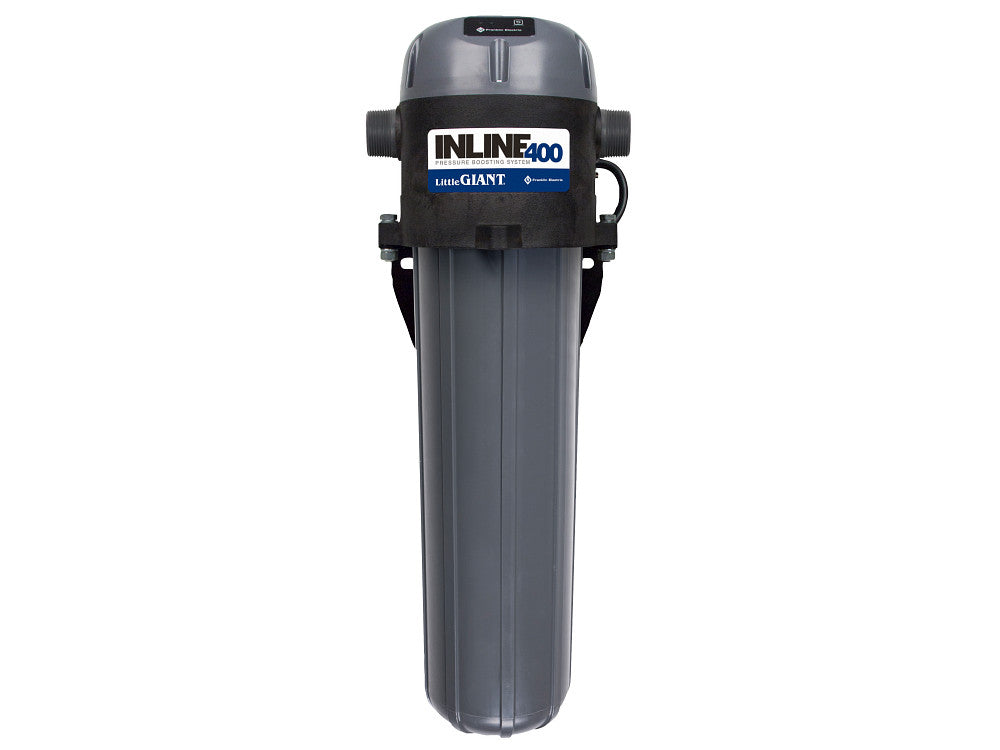

92061503 Little Giant Inline 400 Pressure Boosting System (1/3 HP, 60 Hz, Single Phase, 115 VAC, 6 ft lead, 15 GPH)
92061503 Little Giant Inline 400 Pressure Boosting System (1/3 HP, 60 Hz, Single Phase, 115 VAC, 6 ft lead, 15 GPH)
SKU:92061503
Regular price
$958.11 USD
Regular price
$1,863.00 USD
Sale price
$958.11 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
92061503 Little Giant Inline 400 Pressure Boosting System (1/3 HP, 60 Hz, Single Phase, 115 VAC, 6 ft lead, 15 GPH)
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps - Full Load | 6.6 A |
| Full Load Watts | 250 W |
| Volts | 115 VAC |
| Lead Length | 6 ft |
| Motor Type | Encapsulated |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Rated Flow Rate - 60Hz | 0.25 gpm / 15 gph |
| Shut Off Height - 60Hz | 125 ft |
| Pressure Sensor Included | Yes |
| Motor Cooling | Water |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Stainless Steel |
| Impeller Type | Closed |
| Impeller Material | Thermoplastic |
Installation |
|
| Discharge Thread | FNPT |
| Discharge Type | Threaded - FNPT |
| Discharge | 1.25 " |
| Suction | 1.25 " |
| Suction Type | NPT |
| Product Length | 8.86 " |
| Product Width | 7.09 " |
| Product Height | 29.61 " |
| Product Weight | 35 lb |
| Product Weight w/ Pack | 42 lb |
| Carton Length | 33 " |
| Carton Width | 11 " |
| Carton Height | 12 " |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cULus Listed |
| Standard Warranty | 12 Months |
| Repair Kit Available | Yes |
