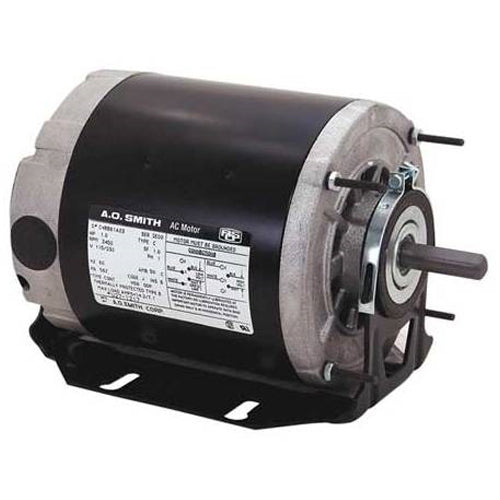

904 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48 Frame, 1725 RPM)
904 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48 Frame, 1725 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:904
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Model Number: 904, HP: 1/4, RPM: 1725, Volts: 115, Frame: 48, Enclosure: TENV, Type: Split Phase Resilient Base Motor,
| Applications |
| Belt Drive Fans and Blowers, HVAC |
| Features |
| Class B Ins. (Class A see notes); Reversible; Continuous Duty; Sleeve & Ball Bearing; Energy Efficient $ (see notes); 60 HZ; Open and Encloseds |
Tech Specs. | |
Brand |
A.O. Smith |
Model Number |
904 |
HP |
1/4 |
RPM |
1725 |
Volts |
115 |
Full Load Amps |
3.6 |
Service Factor |
1 |
Frame |
48 |
Enclosure |
TENV |
Apx. Wt. (lb) |
21 |
Phase |
Split Phase |
Protector |
Auto |
Type |
Split Phase Resilient Base Motor |
Aprox "C" |
10.4 |
Dim "AG" |
8.8 |
Motor Mount |
Resilient Base |
904 |
|
