U.S. Motors

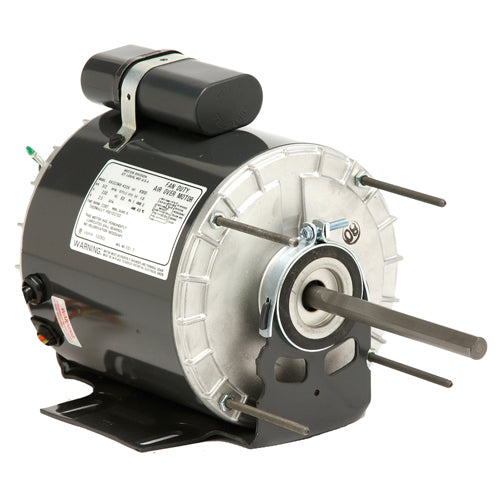

9034 U.S. Motors Unit Heater Fan Motor (1/6 HP, 115 Volts, 1075 RPM/Spds.)

9034 U.S. Motors Unit Heater Fan Motor (1/6 HP, 115 Volts, 1075 RPM/Spds.)

[COUNT] shoppers are looking at this right now

9034

$276.21 USD
$0.00 USD $276.21 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 9034 HP: 1/6, RPM/Spds.: 1075, Volts: 115, Cap MFD: 4, Amps: 2.6, Shell XI: 4.3, Diameter: 5.6, Mount: Stud Mount, Permanent Split Capacitor & Shaded Pole

Applications
Designed to meet manufacturer's requirements for use on unit heaters.
Features
Continuous Duty, Air Over Green Ground Lead
Reversible Motors Are Easily Reversed 48 Frame Has 8-32 NF-2A Thread
2-1/2" Diameter Hub Rings 56 Frame Has 10-32 NF-2A Thread
Automatic Reset Thermal Overload Protector Leads Are SJO Cord
Extended Mounting Studs

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
9034
HP
1/6
RPM/Spds.
1075
Volts
115
Cap MFD
4
Amps
2.6
Shaft Length (N)
2.5
Shell XI
4.3
Apx. Wt. (lb)
12
Total C
7.9
Diameter
5.6
Mount
Stud Mount
Enclosure
Totally Enclosed, Air Over
Type
Unit Heater Fan Motor
Notes
See Product Literature

Support Documents (pdf)

Product Literature
