Little Giant

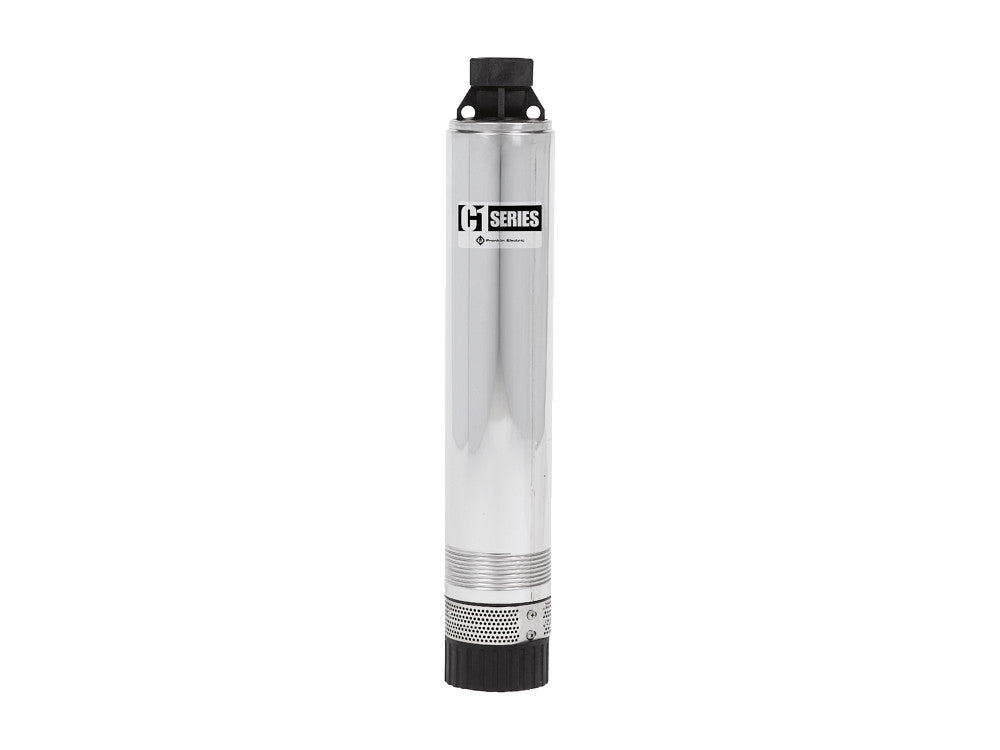

90302015 Little Giant C1 Series Cistern Pump (20XC1-05P4-2W115 Model, 1/2 HP, 115 Volts, Single Phase, 2-Wire, 5 Stage, 10' Lead, 60 Hz, 6 Stages, 25 Max GPM, 1.25" Threaded NPT Discharge)
90302015 Little Giant C1 Series Cistern Pump (20XC1-05P4-2W115 Model, 1/2 HP, 115 Volts, Single Phase, 2-Wire, 5 Stage, 10' Lead, 60 Hz, 6 Stages, 25 Max GPM, 1.25" Threaded NPT Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:90302015
Regular price
$776.83 USD
Regular price
$1,431.00 USD
Sale price
$776.83 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Little Giant 90302015, Cistern Pumps Type, C1 Series, 20XC1-05P4-2W115 Model, 1/2 HP, 115 Volts, 60 Hz, 6 Stages, 28 Max GPM.
The Little Giant C1 Series is ideal for a variety of pumping needs: gray water removal, filtered effluent service water, water reclamation, aeration, and other fountain or pond applications, and agriculture. The optimized hydraulic design allows for increased performance and decreased power usage. The pump’s unique bottom suction design allows for maximum fluid drawdown without compromising durability or overall life, and it does not require the use of a flow induction sleeve. Intended specifically for use in a cistern or tank, C1 Series pumps are suitable for use in agricultural, residential, and commercial installations.
| Applications | |
| Gray water, pumping, Filtered effluent service water pumping, Water reclamation projects such as pumping from rain catchment basins, Aeration Fountain or pond application, Agriculture and livestock pumping | |
| Features | |
| Supplied with a removable 5" base for secure and reliable mounting | |
| Bottom suction design | |
| Robust thermoplastic discharge head design resists breakage during installation and operation | |
| Single shell housing design provides a compact unit while ensuring cool and quiet operation | |
| Hydraulic components molded from high quality engineered thermoplastics | |
| Optimized hydraulic design allows for increased performance and decreased power usage | |
| All metal components are made of high grade stainless steel for corrosion resistance | |
| Available with a high quality 115 V or 230 V, 1/2 hp motor | |
| Fluid flows of 10, 20, and 30 gpm, with a maximum shut-off pressure of 100 psi | |
| Heavy-duty 600 V 10 foot SJOOW jacketed lead | |
|
Specifications |
|
|
Brand
|
Little Giant
|
|
Catalog Number
|
90302015
|
|
Type
|
Cistern Pumps
|
|
Series
|
C1
|
|
Model
|
20XC1-05P4-2W115
|
|
HP
|
1/2
|
|
Volts
|
115
|
|
Hz
|
60
|
|
Stages
|
6
|
|
Amps
|
9
|
|
Watts
|
920
|
|
Wire
|
2
|
|
Max GPM
|
28
|
|
Max Amps
|
10
|
|
Support Documents (pdf)
|
