U.S. Motors

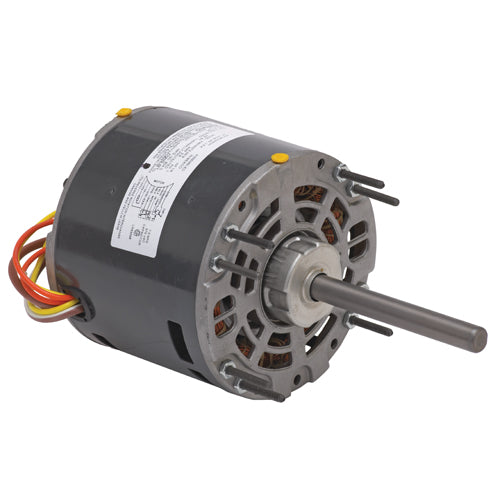

8952 U.S. Motors Permanent Split Cap. Direct Drive Fan Motor (1/5 HP, 203-230 Volts, 1075/3 RPM)
8952 U.S. Motors Permanent Split Cap. Direct Drive Fan Motor (1/5 HP, 203-230 Volts, 1075/3 RPM)
SKU:8952
Regular price
$199.53 USD
Regular price
Sale price
$199.53 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 8952 HP: 1/5, RPM: 1075/3, Volts: 203-230, Cap MFD: 5, Amps: 1.6, Bearings: Slv, Shaft Length (N): 4, Shell XI: 4.9, Total C: 9.9, Mount: Stud or Hub Ring Mount (2.5"),
| Applications | |
| Designed to meet manufacturer's requirements for use on direct drive fan & blowers | |
| Features | |
| Reversible Unless Noted | Continuous Duty, Air Over |
| Sleeve Bearings Have All Angle Thrust System | 24" Line Leads Unless Otherwise Noted |
| Designed for Use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Connection and Capacitor Information Furnished | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8952 |
HP |
1/5 |
RPM |
1075/3 |
Volts |
203-230 |
Cap MFD |
5 |
Amps |
1.6 |
Bearings |
Slv |
Shaft Length (N) |
4 |
Apx. Wt. (lb) |
11 |
Shell XI |
4.9 |
Total C |
9.9 |
Diameter |
5.0" Diameter |
Shaft |
Single |
Mount |
Stud or Hub Ring Mount (2.5") |
Enclosure |
Open Air Over |
Capacitor |
Permanent Split |
Type |
Direct Drive Fan |
Support Documents (pdf) | ||||
| Product Literature | ||||
