U.S. Motors

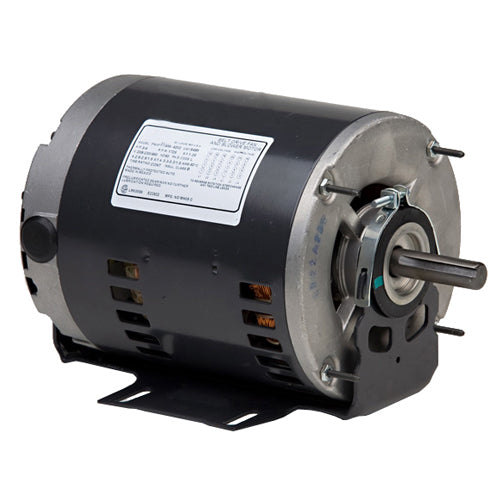

8498 U.S. Motors Commercial Belt-Drive Blower Motor (1 HP, 208-230/460 Volts, 1725 RPM)
8498 U.S. Motors Commercial Belt-Drive Blower Motor (1 HP, 208-230/460 Volts, 1725 RPM)
[COUNT] shoppers are looking at this right now
SKU:8498
Regular price
$665.68 USD
Regular price
$0.00 USD
Sale price
$665.68 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 8498, HP: 1, RPM: 1725, Volts: 208-230/460, Frame: 56, Motor Mount: Resilient, Phase: Three, Enclosure: Open Dripproof, belt-drive blowers in commercial air conditioning applications
| Applications | |
| Designed to meet manufacturer's requirements for belt-drive blowers in commercial air conditioning applications where 3 phase power is required. | |
| Features | |
| Automatic Reset Thermal Overload Protector | Dual Voltage |
| Reversible Rotation | Class B Insulation |
| Continuous Duty | 104F (40C) Ambient |
| Double Contact Sealed Ball Bearings | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8498 |
HP |
1 |
RPM |
1725 |
Volts |
208-230/460 |
Frame |
56 |
Amps |
4.3/2.2 |
Shaft Length (N) |
1.9 |
Shaft Dia. (U) |
0.625 |
Apx. Wt. (lb) |
26 |
Total Length |
11.3 |
Motor Mount |
Resilient |
Phase |
Three |
Bearings |
Ball |
OEM Replacement |
- |
Enclosure |
Open Dripproof |
Type |
Commercial Belt-Drive Blower Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
