U.S. Motors

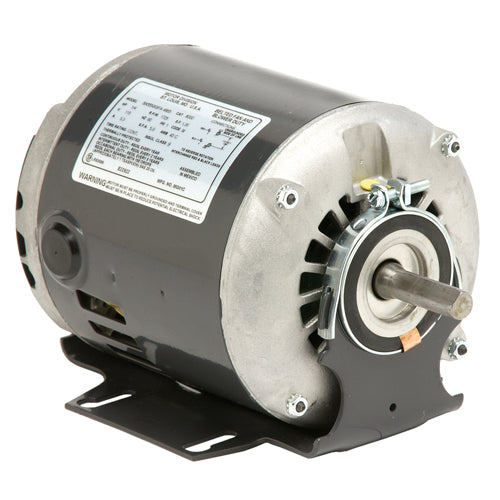

8438 U.S. Motors Split Phase Belted Fan and Blower Motor (1/3 HP, 115/208-230 Volts, 1725 RPM/Spds.)

8438 U.S. Motors Split Phase Belted Fan and Blower Motor (1/3 HP, 115/208-230 Volts, 1725 RPM/Spds.)

[COUNT] shoppers are looking at this right now

8438

$409.88 USD
$0.00 USD $409.88 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 8438 HP: 1/3, RPM/Spds.: 1725, Volts: 115/208-230, Frame: 48, Amps: 6.8/3.1-3.4, Shaft U: 0.625, Bearings: Ball, Protection: Auto, Enclosure: Open Dripproof,
Applications
Designed to meet manufacturer's requirements for belted fans and blowers.
Features
Resilient Base Class B Insulation Unless Otherwise Noted
With Threaded Conduit Hole Reversible Rotation
Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
8438
HP
1/3
RPM/Spds.
1725
Volts
115/208-230
Frame
48
Amps
6.8/3.1-3.4
Shaft Length (N)
2
Shaft U
0.625
Apx. Wt. (lb)
17
Total C
10.2
Bearings
Ball
Protection
Auto
Enclosure
Open Dripproof
Type
Split Phase Belted Fan & Blower Motor
SF
1.35
Speed
Single Speed
Notes
See Product Literature
