U.S. Motors

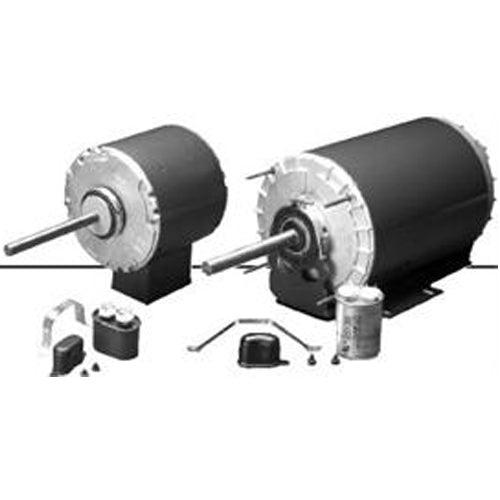

8233 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)
8233 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 460 Volts, 1075 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:8233
Regular price
$426.27 USD
Regular price
$0.00 USD
Sale price
$426.27 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 8233, HP: 3/4, RPM: 1075, Volts: 460, Shaft N: 3, Shell XI: 6, Total C: 10.2, Diameter: 5.6" Diameter, For use on condenser cooling fans
| Applications | |
| For use on condenser cooling fans in commercial air conditioning applications. | |
| Features | |
| Capacitor and Outlet Box Included, unless noted | 40C Ambient |
| Reversible Rotation | Dual Voltage |
| Double-Sealed Ball Bearings | Class B Insulation |
| Continuous Duty, Air Over | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8233 |
HP |
3/4 |
RPM |
1075 |
Volts |
460 |
Bearings |
Ball |
Amps |
2.7 |
Cap. MFD |
12.5 |
Shaft N |
3 |
Apx. Wt. (lb) |
19 |
Shell XI |
6 |
Total C |
10.2 |
Diameter |
5.6" Diameter |
Stud YM |
N/A |
Mount |
All Angle Mounting, Hub Ring Mount (2 1/4") |
Type |
Permanent Split Capacitor Commercial Condenser Fan Motor |
OEM Replacement |
Aron |
