U.S. Motors

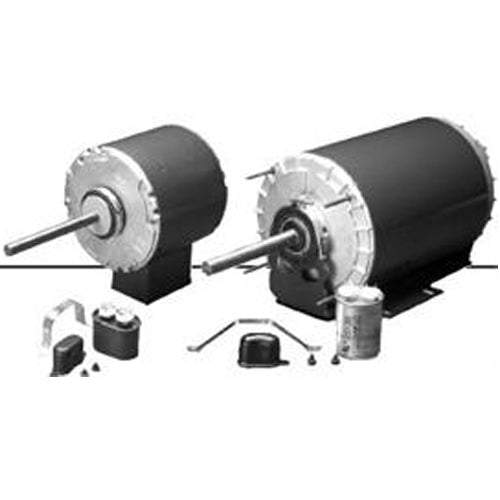

8055 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1 HP, 460 Volts, 1080 RPM)
8055 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1 HP, 460 Volts, 1080 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:8055
Regular price
$679.20 USD
Regular price
$0.00 USD
Sale price
$679.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson 8055, HP: 1, RPM: 1080, Volts: 460, Shaft N: 5, Shell XI: 6.6, Total C: 11.6, Diameter: 5.6" Diameter, For use on condenser cooling fans
| Applications | |
| For use on condenser cooling fans in commercial air conditioning applications. | |
| Features | |
| Capacitor and Outlet Box Included, unless noted | 40C Ambient |
| Reversible Rotation | Dual Voltage |
| Double-Sealed Ball Bearings | Class B Insulation |
| Continuous Duty, Air Over | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8055 |
HP |
1 |
RPM |
1080 |
Volts |
460 |
Bearings |
Ball |
Amps |
2.5 |
Cap. MFD |
15 |
Shaft N |
5 |
Apx. Wt. (lb) |
20 |
Shell XI |
6.6 |
Total C |
11.6 |
Diameter |
5.6" Diameter |
Stud YM |
N/A |
Mount |
All Angle Mounting, Hub Ring Mount (2 1/4") |
Type |
Permanent Split Capacitor Commercial Condenser Fan Motor |
OEM Replacement |
Lennox |
Support Documents (pdf) | ||||
| Product Literature | ||||
