WEG

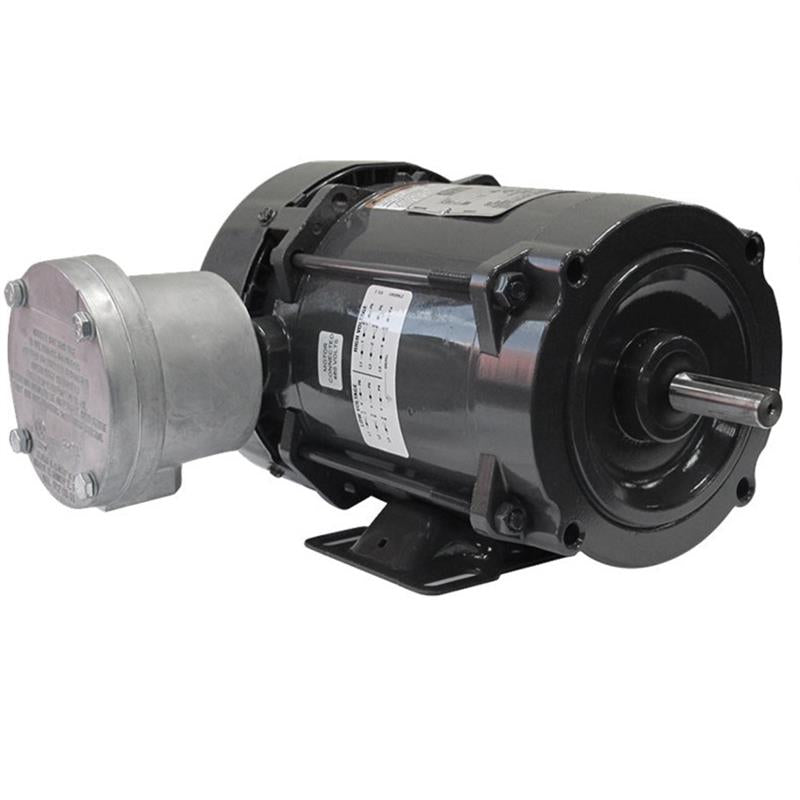

.7536XS1B56 WEG Explosion Proof Motor (0.75 HP, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof)

.7536XS1B56 WEG Explosion Proof Motor (0.75 HP, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof)

.7536XS1B56

$522.51 USD
$522.51 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .7536XS1B56, Series, 0.75 HP, 0.55 KW, 3600 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof
Applications
WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations.
Features
Class F insulation (Impregnation Resin and Magnet wire are class H)
F1 Mounted (Cast Iron frames are F2 convertible)
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings (Frames 364T and up)
CSA Approved - File LR50962
UL Listed - File E87848

Specifications

Brand
WEG
Catalog Number
.7536XS1B56
Type
Explosion Proof
HP
0.75
KW
0.55
RPM
3600
Phase
1
Service Factor
1
Frame
56
Voltage
115/208-230
Enclosure
Explosion Proof
Mount
Foot Mount
Full Load Amps
4.3
Warranty
1 Year
