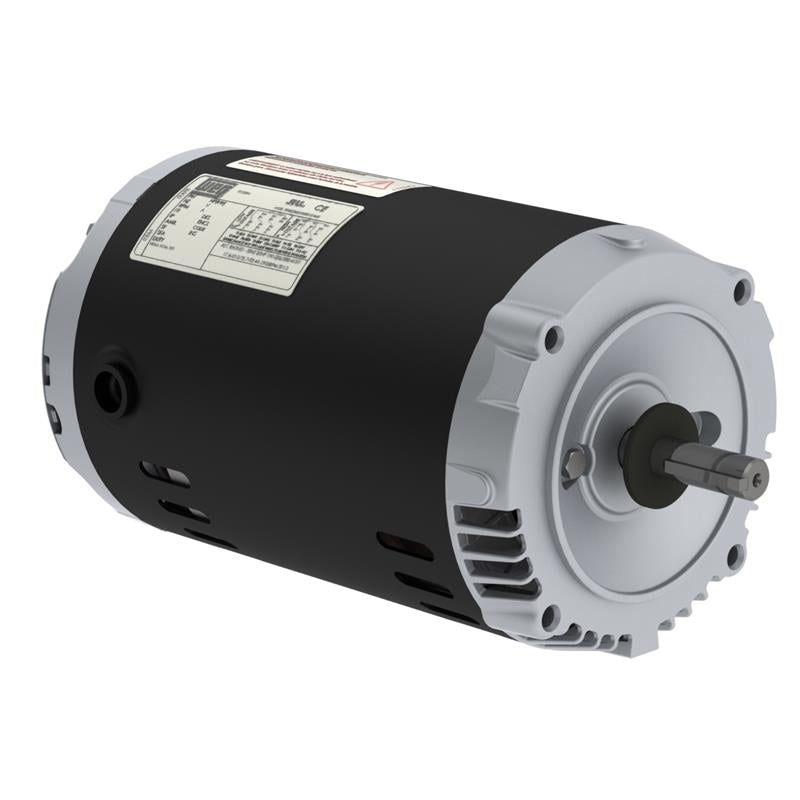

.7536OS3EJPR56C-S WEG Jet Pump Motor (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3455 RPM)
.7536OS3EJPR56C-S WEG Jet Pump Motor (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3455 RPM)
SKU:.7536OS3EJPR56C-S
Regular price
$187.29 USD
Regular price
Sale price
$187.29 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
WEG Motor .7536OS3EJPR56C-S, 0.75 HP , 3455 RPM, B56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , ODP , Jet Pump Motor
Applications |
Features |
Jet Pump Motor, 3-Phase, Rolled Steel, Standard Efficiency, TEFC & ODP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
.7536OS3EJPR56C |
HP |
0.75 HP |
RPM |
3455 |
FRAME |
B56 |
VOLTAGE |
208-230/460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
ODP |
APPROXIMATE WEIGHT (lb) |
26 |
FEET |
NO |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
2.55-2.39/1.20 A |
LOCKED ROTOR CURRENT IL IN |
5.7 |
LOCKED ROTOR CURRENT |
13.6/6.82 A |
LOCKED ROTOR TORQUE |
2.4 |
BREAKDOWN TORQUE |
2.6 |
EFFICIENCY 50 |
64 |
EFFICIENCY 75 |
70 |
EFFICIENCY 100 |
72 |
POWER FACTOR 50 |
0.61 |
POWER FACTOR 75 |
0.72 |
POWER FACTOR 100 |
0.81 |
SERVICE FACTOR |
1.50 (1.00 at 208V) |
INERTIA KGM2 |
0.00093 kgm |
INERTIA SQ FT |
0.02207 sq.ft. |
LOCKED ROTOR TIME |
15 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP21 |
NO-LOAD CURRENT |
1.53/0.765 A |
INSULATION CLASS |
B |
FULL LOAD TORQUE NM |
1.52 Nm |
FULL LOAD TORQUE FT |
1.12 .ft |
SLIP |
0.0403 |
DESIGN |
A |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6203 2RS |
BEARINGS N D E |
6202 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
