WEG

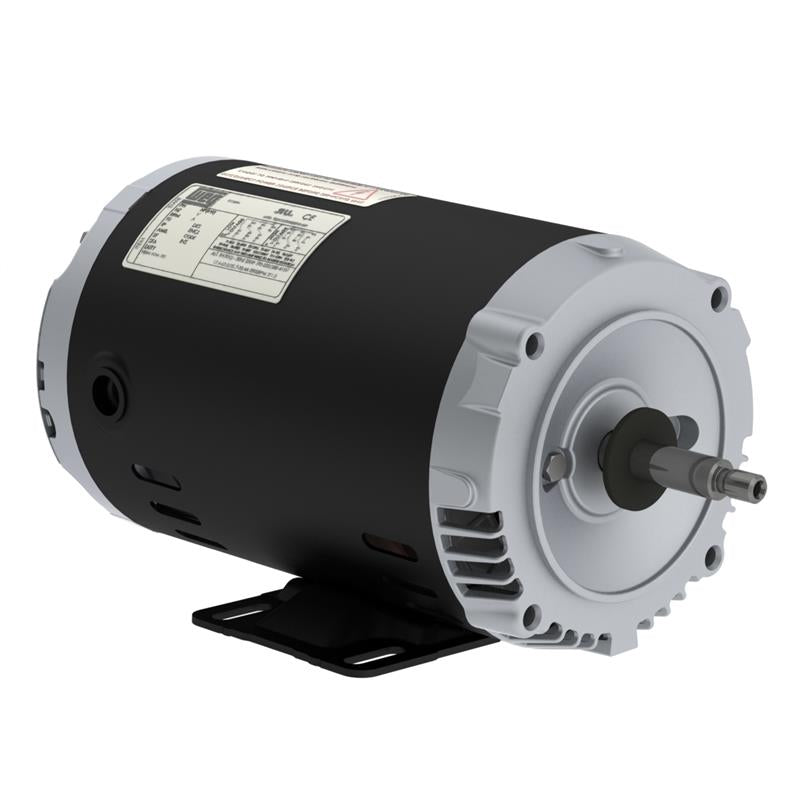

.7536OS3EJP56J-S WEG Jet Pump Motor (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3455 RPM)

.7536OS3EJP56J-S WEG Jet Pump Motor (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3455 RPM)

SKU:.7536OS3EJP56J-S

Regular price $197.49 USD
Regular price Sale price $197.49 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .7536OS3EJP56J-S, 0.75 HP , 3455 RPM, B56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , ODP , Jet Pump Motor
Applications
Features
Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs

Brand
WEG Motors
Model Number
.7536OS3EJP56J
HP
0.75 HP
RPM
3455
FRAME
B56
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
26
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
2.55-2.39/1.20 A
LOCKED ROTOR CURRENT IL IN
5.7
LOCKED ROTOR CURRENT
13.6/6.82 A
LOCKED ROTOR TORQUE
2.4
BREAKDOWN TORQUE
2.6
EFFICIENCY 50
64
EFFICIENCY 75
70
EFFICIENCY 100
72
POWER FACTOR 50
0.61
POWER FACTOR 75
0.72
POWER FACTOR 100
0.81
SERVICE FACTOR
1.50 (1.00 at 208V)
INERTIA KGM2
0.00093 kgm
INERTIA SQ FT
0.02207 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
1.53/0.765 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
1.52 Nm
FULL LOAD TORQUE FT
1.12 .ft
SLIP
0.0403
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
