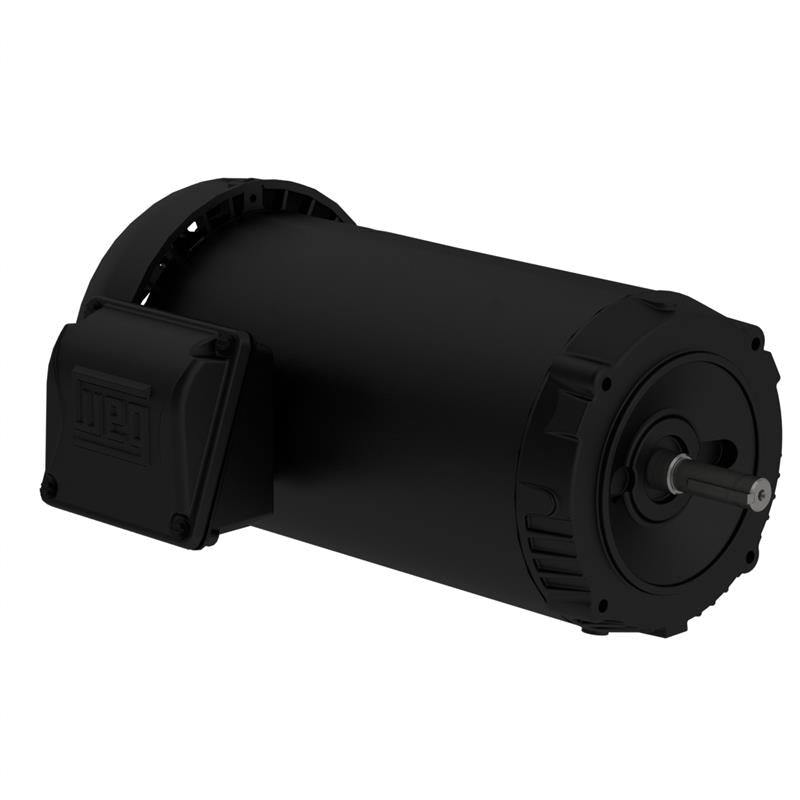

.7536ES3H56CFL-S WEG Motor (0.75 HP, 3600 RPM, 3 Phase, 56C Frame, TEFC, 575 Voltage)

.7536ES3H56CFL-S WEG Motor (0.75 HP, 3600 RPM, 3 Phase, 56C Frame, TEFC, 575 Voltage)

[COUNT] shoppers are looking at this right now

.7536ES3H56CFL-S

$0.00 USD
$312.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

WEG .7536ES3H56CFL-S, 0.75 HP, 0.55 KW, 3600 RPM, 3 Phase, 56C Frame, TEFC, 575 Voltage
Applications
These motors have a wide range of applications. Because of their high starting torque, they are particularly well-suited for heavy starting loads. They might be fitted with a C-Face as well as mounting feet for flexible mounting situations.
Features
Single Phase - Ball bearings and Class B Insulation
Three Phase - 50/60 Hz Rating; Ball bearings; Class B Insulation (ODP); Class F Insulation (TEFC)

Specifications

Brand
WEG
Catalog Number
.7536ES3H56CFL-S
Type
Fractional Motor
HP
0.75
KW
0.55
RPM
3600
Phase
3
C Dimension
11.535
Service Factor
1.15
Frame
56C
Enclosure
TEFC
Full Load Amps
0.9
Mount
Footless
Voltage
575
Warranty
1 Year
