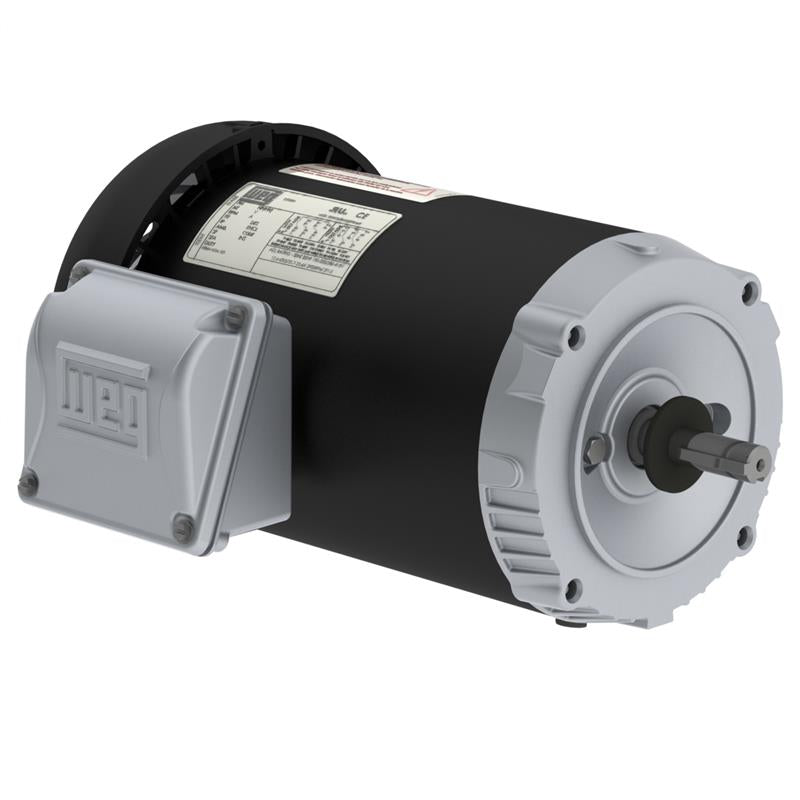

.7536ES3EJPR56C-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3440 RPM)
.7536ES3EJPR56C-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3440 RPM)
SKU:.7536ES3EJPR56C-S
Regular price
$213.53 USD
Regular price
Sale price
$213.53 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
WEG Motor .7536ES3EJPR56C-S, 0.75 HP , 3440 RPM, B56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications |
Features |
Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, TEFC |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
.7536ES3EJPR56C-S |
HP |
0.75 HP |
RPM |
3440 |
FRAME |
B56 |
VOLTAGE |
208-230/460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
26 |
FEET |
NO |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
2.30-2.19/1.10 A |
LOCKED ROTOR CURRENT IL IN |
7.8 |
LOCKED ROTOR CURRENT |
17.1/8.54 A |
LOCKED ROTOR TORQUE |
4 |
BREAKDOWN TORQUE |
3.5 |
EFFICIENCY 50 |
66.5 |
EFFICIENCY 75 |
72.5 |
EFFICIENCY 100 |
77 |
POWER FACTOR 50 |
0.67 |
POWER FACTOR 75 |
0.78 |
POWER FACTOR 100 |
0.83 |
SERVICE FACTOR |
1.15 (1.00 at 208V) |
INERTIA KGM2 |
0.00133 kgm |
INERTIA SQ FT |
0.03156 sq.ft. |
LOCKED ROTOR TIME |
15 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
1.18/0.590 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
1.53 Nm |
FULL LOAD TORQUE FT |
1.13 .ft |
SLIP |
0.0444 |
DESIGN |
A |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6203 2RS |
BEARINGS N D E |
6202 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
