WEG

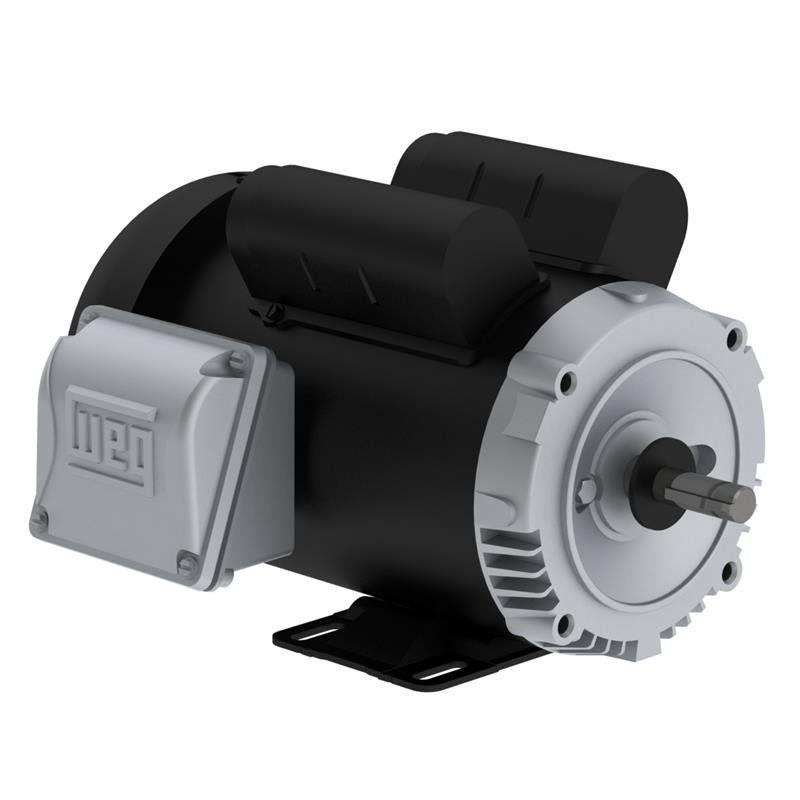

.7536ES1BJP56C-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3490 RPM)

.7536ES1BJP56C-S WEG Motor, Jet Pump (0.75 HP, B56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3490 RPM)

SKU:.7536ES1BJP56C-S

Regular price $233.20 USD
Regular price Sale price $233.20 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .7536ES1BJP56C-S, 0.75 HP , 3490 RPM, B56 FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and keyed shaft end, these versatile single-phase motors provide torque and durability for several applications.
Features
Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
.7536ES1BJP56C-S
HP
0.75 HP
RPM
3490
FRAME
B56
VOLTAGE
115/208-230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
29
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
10.4/5.00-5.20 A
LOCKED ROTOR CURRENT IL IN
6.3
LOCKED ROTOR CURRENT
65.5/32.8 A
LOCKED ROTOR TORQUE
3
BREAKDOWN TORQUE
2.9
EFFICIENCY 50
52
EFFICIENCY 75
60
EFFICIENCY 100
64
POWER FACTOR 50
0.54
POWER FACTOR 75
0.64
POWER FACTOR 100
0.72
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00167 kgm
INERTIA SQ FT
0.03963 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
7.60/3.80 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
1.51 Nm
FULL LOAD TORQUE FT
1.11 .ft
SLIP
0.0306
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
