WEG

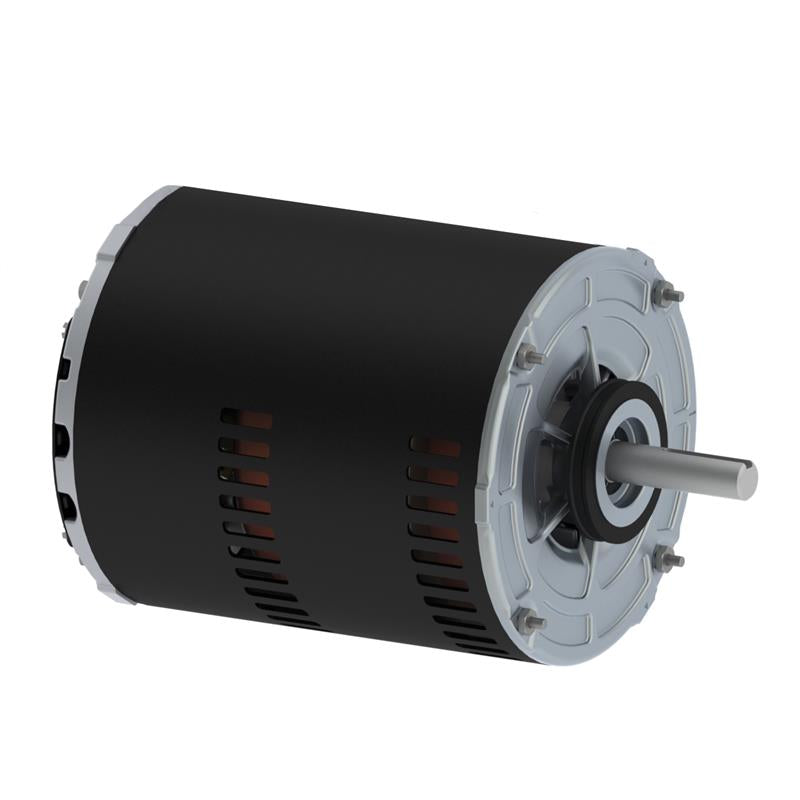

.7518OS1AEC56 WEG Motor (0.75 HP, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, 115 Voltage)

.7518OS1AEC56 WEG Motor (0.75 HP, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, 115 Voltage)

SKU:.7518OS1AEC56

Regular price $146.48 USD
Regular price Sale price $146.48 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .7518OS1AEC56, Commercial HVAC Motors Series, 0.75 HP, 0.55 KW, 1800 RPM, Single Phase, 56 Frame, ODP Enclosure, Belly Mount Motor Mount, 115 Voltage
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
.7518OS1AEC56
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
0.75
KW
0.55
RPM
1800
Phase
Single
C-Dimentions
9.53
Service Factor
1
Frame
56
Enclosure
ODP
Full Load Amps
10.4
Motor Mount
Belly Mount
Voltage
115
Warranty
1 Year
