WEG

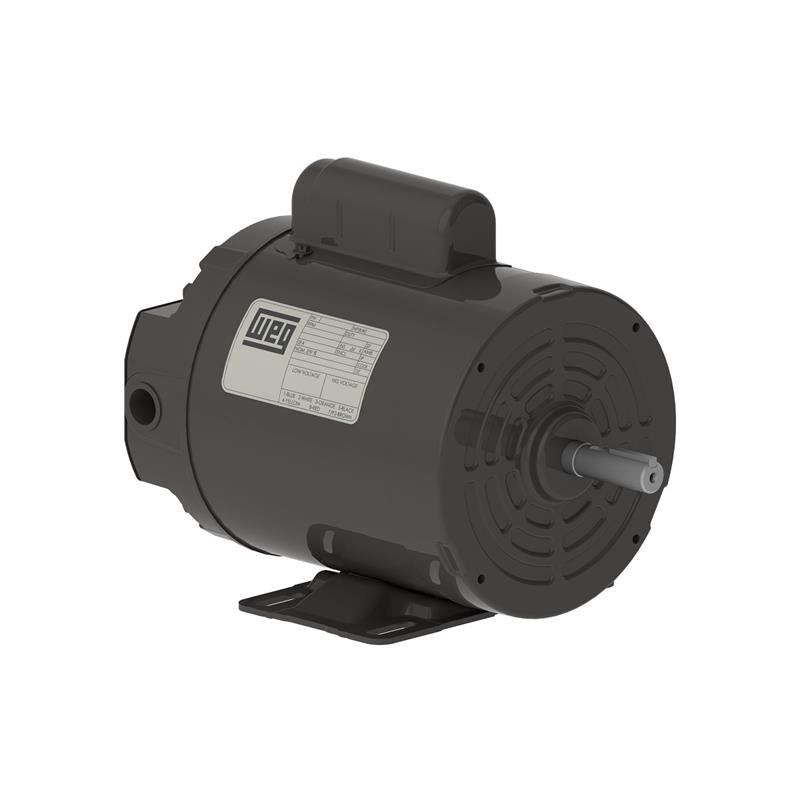

.7518ES1BPFB56 WEG Motor (0.75 HP, 1800 RPM, 1 Phase, B56 Frame, TEAO Enclosure, 115/208-230 Voltage)
.7518ES1BPFB56 WEG Motor (0.75 HP, 1800 RPM, 1 Phase, B56 Frame, TEAO Enclosure, 115/208-230 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:.7518ES1BPFB56
Regular price
$0.00 USD
Regular price
$385.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG .7518ES1BPFB56, 0.75 HP, 0.55 KW, 1800 RPM, 1 Phase, B56 Frame, TEAO Enclosure, 115/208-230 Voltage
| Applications | |
| WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators. | |
| Features | |
| Double shielded ball bearings | |
| Insulation class B | |
| Automatic Reset Thermal Overload Protector | |
Specifications | |
Brand |
WEG |
Catalog Number |
.7518ES1BPFB56 |
Type |
Farm Duty Motors |
HP |
0.75 |
KW |
0.55 |
RPM |
1800 |
Phase |
1 |
C Dimension |
11.102 |
Service Factor |
1.25 |
Frame |
B56 |
Enclosure |
TEAO |
Full Load Amps |
5.6 |
Mount |
Foot Mount |
Voltage |
115/208-230 |
Warranty |
1 Year |
Support Documents (pdf) |
