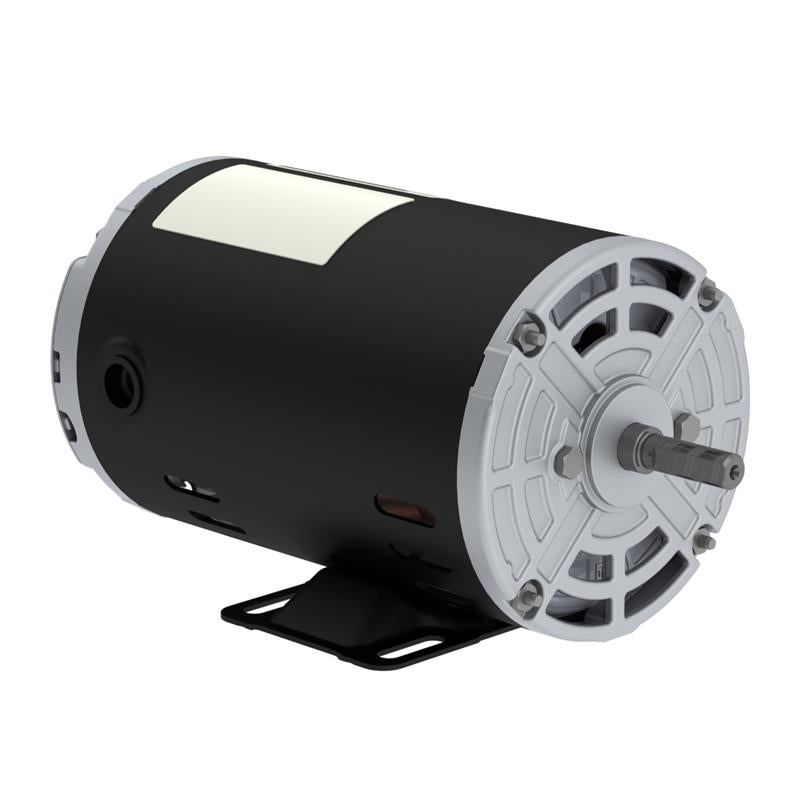

.7512OT3E56-S WEG Motor (.75 HP, 1200 RPM, 3 Phase, 60 Hz, 56H Frame, ODP, 230/460 V, Foot-Mount)
.7512OT3E56-S WEG Motor (.75 HP, 1200 RPM, 3 Phase, 60 Hz, 56H Frame, ODP, 230/460 V, Foot-Mount)
SKU:.7512OT3E56-S
Regular price
$279.84 USD
Regular price
Sale price
$279.84 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
WEG .7512OT3E56-S, .75 HP, 1200 RPM, 3 Phase, 60 Hz, 56H Frame, ODP, 230/460 V, Foot-Mount
Applications | |
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide. | |
Features | |
Rated Output: 0.25 to 25 HP | |
Number of Poles: 2 through 6 | |
Class F insulation | |
Frame Sizes: NEMA 56 to 254/6T | |
Efficiency levels: NEMA Premium | |
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
IP21 standard | |
F1 mount as standard | |
Foot mount / C-face / Footless availability | |
Enclosure: ODP | |
Aluminum endshields |
Specifications | |
Brand |
WEG |
Catalog Number |
.7512OT3E56-S |
Type |
General Purpose Motor |
HP |
.75 |
RPM |
1200 |
Phase |
3 |
Frequency |
60 Hz |
Frame |
56H |
Enclosure |
ODP |
Voltage |
230/460 |
Mounting |
Foot-Mount |
Full Load Amps |
1.26 |
Full Load Efficiency |
81.7 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
12.677 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
