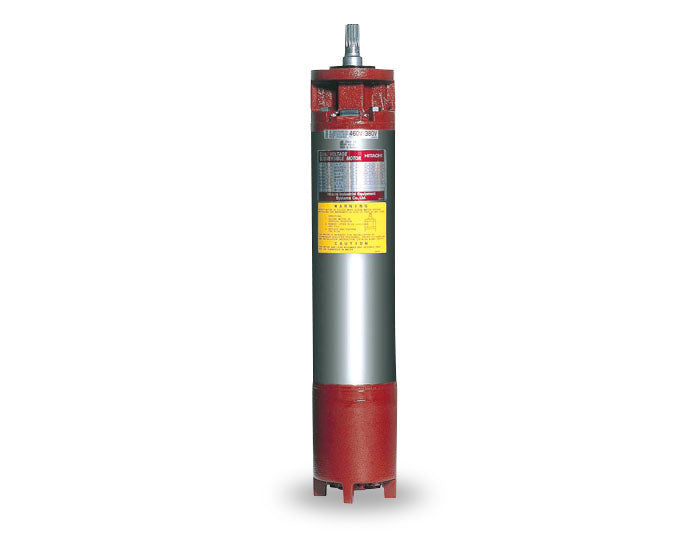

6HIT2-15-1 STA-RITE Hitachi 6" Motor (15 Hp, 230 Volts, 1 Phase, 3600 RPM)
6HIT2-15-1 STA-RITE Hitachi 6" Motor (15 Hp, 230 Volts, 1 Phase, 3600 RPM)
SKU:6HIT2-15-1
Regular price
$3,051.23 USD
Regular price
Sale price
$3,051.23 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
STA-RITE 6HIT2-15-1, 6" Diameter, 15 ?Hp, 230 Volts, 1 Phase, 3600 RPM, 1.15 ServiceFactor, Hitachi 6" Motor
Applications | |
Hitachi Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications. | |
Features | |
Corrosion-Resistant Design For long life | |
High-Capacity Kingsbury-type Bearings performance | |
Low-Profile NEMA Design For ease of installation | |
VFD-Compatible | |
Replaceable Plug-in Motor Lead For ease of maintenance | |
Higher Efficiencies and Lower Current Consumption Reduced energy costs |
Specifications | |
Brand |
STA-RITE |
Model Number |
6HIT2-15-1 |
Type |
6" Hitachi Submersible Motor |
Diameter |
6" |
Hp |
15 |
Kw |
11 |
Volts |
230 |
Phase |
1 |
Hz |
60 |
Poles |
2 |
RPM |
3600 |
Lead Length |
200" |
ServiceFactor |
1.15 |
Rated Input Amps |
72 |
Service Factor Input Amps |
85 |
Winding Resistance(ohms) |
R-Y, B-Y, R-B, 0.678, 0.230, 0.850 |
ThrustCapacity |
3500 |
Length(L) |
33.46" |
Diameter(D) |
5.5" |
Motor Sleeve |
Stainless Steel |
Recommended Control |
HIT-15CBD |
Note |
Use of non Hitachi Control will void warranty |
Control |
Not Included |
Weight |
148 |
Notes |
See Support Document |
Support Documents (pdf)
| ||||
