Hitachi Pump Motor

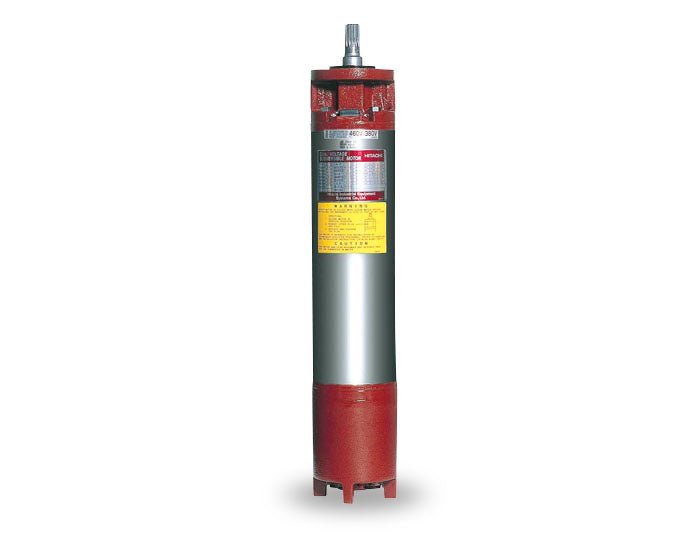

6HIT2-10-2 Pentair Hitachi 6" Motor (10HP, 230V, 3PH, 3600RPM)

6HIT2-10-2 Pentair Hitachi 6" Motor (10HP, 230V, 3PH, 3600RPM)

[COUNT] shoppers are looking at this right now

6HIT2-10-2

$2,564.40 USD
$5,061.00 USD $2,564.40 USD
Sale Sold out
Shipping calculated at checkout.

STA-RITE 6HIT2-10-2, 6" Diameter, 10 HP, 230 Volts, 3 Phase, 3600 RPM, 1.15 ServiceFactor, Hitachi 6" Motor

Applications
Hitachi Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications.
Features
Corrosion-Resistant Design For long life
High-Capacity Kingsbury-type Bearings performance
Low-Profile NEMA Design For ease of installation
VFD-Compatible
Replaceable Plug-in Motor Lead For ease of maintenance
Higher Efficiencies and Lower Current Consumption Reduced energy costs

Specifications

Brand
STA-RITE
Model Number
6HIT2-10-2
Type
6" Hitachi Submersible Motor
Diameter
6"
HP
10
Kw
7.5
Volts
230
Phase
3
Hz
60
Poles
2
RPM
3600
Lead Length
200"
ServiceFactor
1.15
Rated Input Amps
29
Service Factor Input Amps
33
Winding Resistance(ohms)
0.448
ThrustCapacity
3500
Length(L)
26.97"
Diameter(D)
5.5"
Motor Sleeve
Stainless Steel
Weight
110
Notes
See Support Document
