U.S. Motors

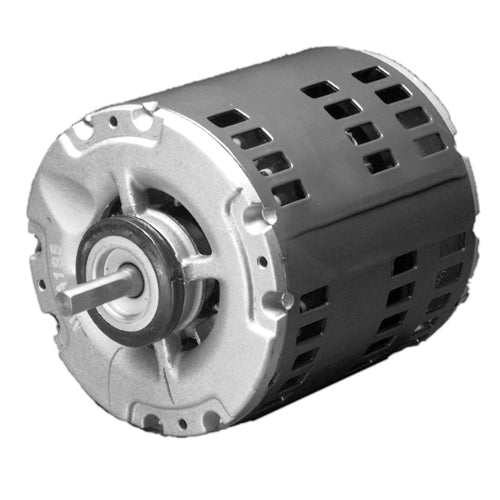

6796 U.S. Motors Split Phase Evaporative Cooler Motor (3/4 HP, 230 Volts, 1725/1140 RPM/Spds.)
6796 U.S. Motors Split Phase Evaporative Cooler Motor (3/4 HP, 230 Volts, 1725/1140 RPM/Spds.)
SKU:6796
Regular price
$259.57 USD
Regular price
Sale price
$259.57 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 6796 HP: 3/4, RPM/Spds.: 1725/1140, Volts: 230, Frame: 56Z, Amps: 5.5, Shaft Length (N): 1.6, Shaft U: 0.5, Bearings: Slv, Protection: Auto, Enclosure: Open Dripproof,
| Applications | |
| Designed to meet manufacturer's requirements for evaporative cooling units. | |
| Features | |
| Re-Oilable Bearings | Zinc-Phosphate Stator Studs And Nuts |
| Class B Insulation | Corrosion Resistant Rotor Core And Actuator Assembly |
| CW Rotation Shaft End | Industry Standard Hub To Hub Dimension |
| Automatic Reset Thermal Overload Protector | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
6796 |
HP |
3/4 |
RPM/Spds. |
1725/1140 |
Volts |
230 |
Frame |
56Z |
Amps |
5.5 |
Shaft Length (N) |
1.6 |
Shaft U |
0.5 |
Apx. Wt. (lb) |
19 |
Total C |
9.4 |
Bearings |
Slv |
Protection |
Auto |
Enclosure |
Open Dripproof |
Type |
Split Phase Evaporative Cooler Motor |
SF |
1 |
Diameter |
6.3" |
Speed |
Two Speed |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
