U.S. Motors

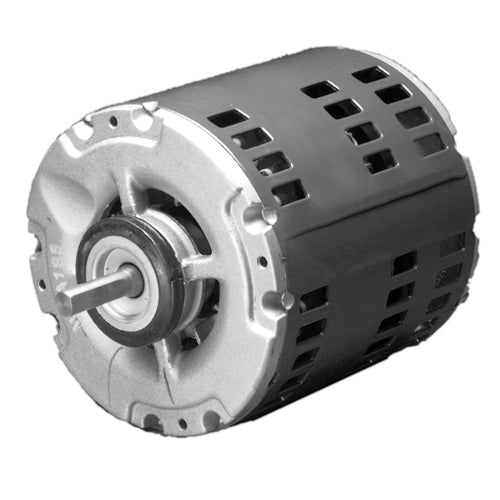

6766 U.S. Motors Split Phase Evaporative Cooler Motor (1/2 HP, 230 Volts, 1725 RPM/Spds.)
6766 U.S. Motors Split Phase Evaporative Cooler Motor (1/2 HP, 230 Volts, 1725 RPM/Spds.)
SKU:6766
Regular price
$193.71 USD
Regular price
Sale price
$193.71 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 6766 HP: 1/2, RPM/Spds.: 1725, Volts: 230, Frame: 56Z, Amps: 4.8, Shaft Length (N): 1.6, Shaft U: 0.5, Bearings: Slv, Protection: Auto, Enclosure: Open Dripproof,
| Applications | |
| Designed to meet manufacturer's requirements for evaporative cooling units. | |
| Features | |
| Re-Oilable Bearings | Zinc-Phosphate Stator Studs And Nuts |
| Class B Insulation | Corrosion Resistant Rotor Core And Actuator Assembly |
| CW Rotation Shaft End | Industry Standard Hub To Hub Dimension |
| Automatic Reset Thermal Overload Protector | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
6766 |
HP |
1/2 |
RPM/Spds. |
1725 |
Volts |
230 |
Frame |
56Z |
Amps |
4.8 |
Shaft Length (N) |
1.6 |
Shaft U |
0.5 |
Apx. Wt. (lb) |
19 |
Total C |
9.4 |
Bearings |
Slv |
Protection |
Auto |
Enclosure |
Open Dripproof |
Type |
Split Phase Evaporative Cooler Motor |
SF |
1 |
Diameter |
6.3" |
Speed |
Single Speed |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
