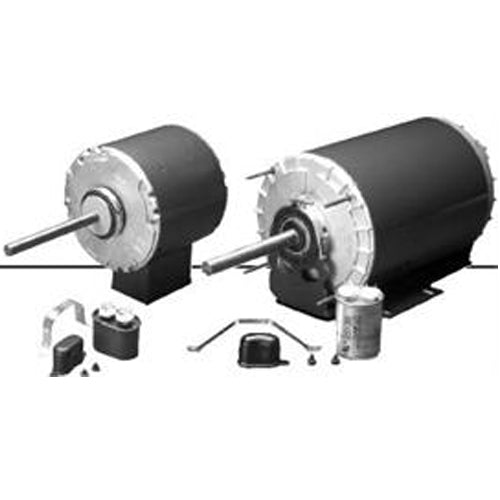

6603 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230/460 Volts, 1075 RPM)

6603 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230/460 Volts, 1075 RPM)

[COUNT] shoppers are looking at this right now

6603

$582.87 USD
$0.00 USD $582.87 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

US Motors Emerson 6603, HP: 3/4, RPM: 1075, Volts: 208-230/460, Shaft N: 5, Shell XI: 6.3, Total C: 12.4, Diameter: 5.6" Diameter, For use on condenser cooling fans

Applications
For use on condenser cooling fans in commercial air conditioning applications.
Features
Capacitor and Outlet Box Included, unless noted 40C Ambient
Reversible Rotation Dual Voltage
Double-Sealed Ball Bearings Class B Insulation
Continuous Duty, Air Over Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
6603
HP
3/4
RPM
1075
Volts
208-230/460
Bearings
Ball
Amps
5.0/2.5
Cap. MFD
7.5
Shaft N
5
Apx. Wt. (lb)
22
Shell XI
6.3
Total C
12.4
Diameter
5.6" Diameter
Stud YM
N/A
Mount
All Angle Mounting, Hub Ring Mount (2 1/4")
Type
Permanent Split Capacitor Commercial Condenser Fan Motor
OEM Replacement
-
