U.S. Motors

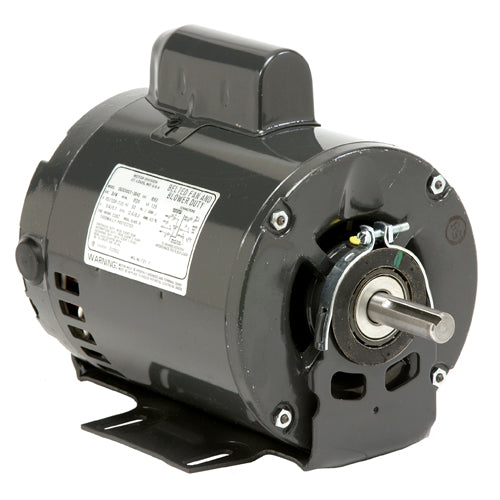

6316 U.S. Motors General Purpose Motor (1-1/3 HP, 56 Frame, 1800/1200 RPM)
6316 U.S. Motors General Purpose Motor (1-1/3 HP, 56 Frame, 1800/1200 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:6316
Regular price
$492.39 USD
Regular price
Sale price
$492.39 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson 6316, HP: 1-1/3, RPM: 1800/1200, Volts: 208/230, Frame: 56, "C" Dim. : 11.8, Speed: Two, Motor Mount : Resilient Base , Enclosure: ODP, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For air compressors, pumps, conveyors, blowers and general industrial equipment |
| Features |
| Class A or B Insulation, Reversible Rotation, 40C Ambient, 60 Hertz, Continuous Duty |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase Motor |
Model Number |
6316 |
HP |
1-1/3 |
RPM |
1800/1200 |
Volts |
208/230 |
SF |
1.15 |
Frame |
56 |
Full Load Amps |
7.4-7.4/4.0-4.3 |
"C" Dim. |
11.8 |
Apx. Wt. (lb) |
32 |
Speed |
Two |
Phase |
Single |
Motor Mount |
Resilient Base |
Enclosure |
ODP |
Type |
General Purpose Single Phase Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
