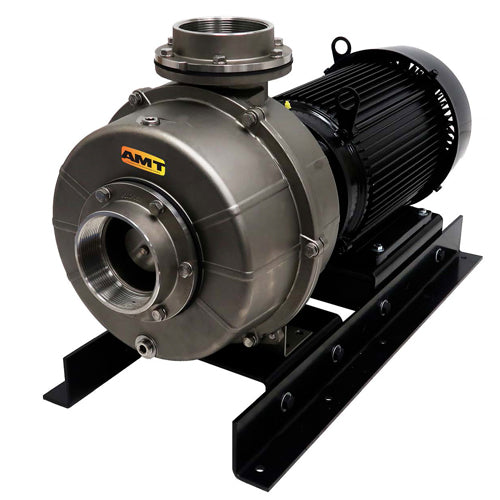

6212-98 AMT Stainless Steel Self-Priming Pumps (15 HP, TEFC, 230/460 Voltage, 3 Phase, 4" Suction, 4" Discharge)

6212-98 AMT Stainless Steel Self-Priming Pumps (15 HP, TEFC, 230/460 Voltage, 3 Phase, 4" Suction, 4" Discharge)

👁️ [COUNT] People are currently viewing this product.

6212-98

$4,610.67 USD
$6,916.00 USD $4,610.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 6212-98, 4" Self-Priming Stainless Steel Pump Type, 15 HP, TEFC Enclosure, 230/460 Voltage, 4" Suction, 4" Discharge,
Applications
The AMT Stainless Steel Self-Priming Pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. These units have a stainless steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. Pumps are designed to handle liquids with solids contents up to 1/2 spherical solids for our 3 models and 3/4 spherical solids for our for 4 models. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
Features
Viton Mechanical Seal, O-Rings and Gaskets. Optional Silicon Carbide Seal Available.
Built-In Viton Flapper/Check Valve Permits Self-Priming up to 20.
Stainless Steel Self-Cleaning Semi- Open Impeller.
Fill & Drain Plugs for Easy Servicing
Semi-Open Impeller with Spherical Solids Handling.
* See Support Documents for pump GPM, TDH and PSI chart.

Specifications

Brand
AMT
Catalog Number
6212-98
Type
4" Self-Priming Stainless Steel Pump
Series
Self-Priming Pumps
HP
15
Phase
3
Enclosure
TEFC
Frame
215JM
Voltage
230/460
Hz
60
Suction
4"
Discharge
4"
Optional Base (not included)
A200-90
Length
38 [97]
Width
14.6 [37.1]
Height
16.1 [40.9]
Ship Weight (lbs.)
263
Solid Handling Capability
up to 3/4
Construction
Cast Stainless Steel
Mechanical Seal Material
Viton w/Carbon/Carbide Faces
Max Temp
200 F
Notes
See support documents
