AMT

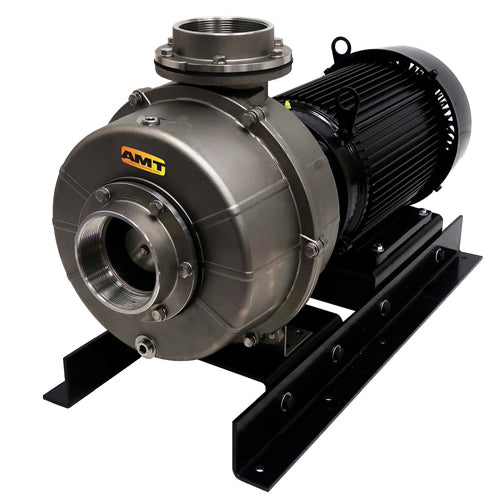

6211-98 AMT Stainless Steel Self-Priming Pumps (10 HP, TEFC, 230 Voltage, 1 Phase, 4" Suction, 4" Discharge)

6211-98 AMT Stainless Steel Self-Priming Pumps (10 HP, TEFC, 230 Voltage, 1 Phase, 4" Suction, 4" Discharge)

SKU:6211-98

Regular price $4,612.99 USD
Regular price $7,104.00 USD Sale price $4,612.99 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 6211-98, 4" Self-Priming Stainless Steel Pump Type, 10 HP, TEFC Enclosure, 230 Voltage, 4" Suction, 4" Discharge,
Applications
The AMT Stainless Steel Self-Priming Pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. These units have a stainless steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. Pumps are designed to handle liquids with solids contents up to 1/2 spherical solids for our 3 models and 3/4 spherical solids for our for 4 models. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
Features
Viton Mechanical Seal, O-Rings and Gaskets. Optional Silicon Carbide Seal Available.
Built-In Viton Flapper/Check Valve Permits Self-Priming up to 20.
Stainless Steel Self-Cleaning Semi- Open Impeller.
Fill & Drain Plugs for Easy Servicing
Semi-Open Impeller with Spherical Solids Handling.
* See Support Documents for pump GPM, TDH and PSI chart.

Specifications

Brand
AMT
Catalog Number
6211-98
Type
4" Self-Priming Stainless Steel Pump
Series
Self-Priming Pumps
HP
10
Phase
1
Enclosure
TEFC
Frame
215JM
Voltage
230
Hz
60
Suction
4"
Discharge
4"
Optional Base (not included)
A200-90
Length
37 [94]
Width
16.4 [41.7]
Height
16.1 [40.9]
Ship Weight (lbs.)
230
Solid Handling Capability
up to 3/4
Construction
Cast Stainless Steel
Mechanical Seal Material
Viton w/Carbon/Carbide Faces
Max Temp
200 F
Notes
See support documents
