Little Giant

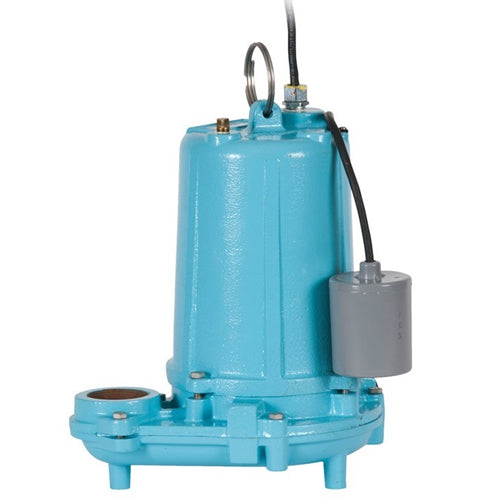

620222 Little Giant WS100HM-12-20 Effluent Pump (2" Discharge, 1 HP, 208-230 Volts, Single Phase, 140 Max GPM)

620222 Little Giant WS100HM-12-20 Effluent Pump (2" Discharge, 1 HP, 208-230 Volts, Single Phase, 140 Max GPM)

[COUNT] shoppers are looking at this right now

620222

$1,262.86 USD
$2,210.00 USD $1,262.86 USD
Sale Sold out
Shipping calculated at checkout.

Little Giant 620222, UPC 010121121577, Type Effluent Pump, Series WS Effluent Series, Model WS100HM-12-20, HP 1, Volts 208-230, Phase Single, Amps 13.6, Max GPM 140, Little Giant Effluent Pump.

Applications
Dewatering, water transfer, effluent and wastewater removal
Features
1/3 hp, 1/2 hp, or 1 hp oil-filled motor with overload protection
Designed for hi-torque with automatic reset
Cast iron motor and pump housing
Solids handling non-clog impeller
Stainless steel heat treated shaft
Double ball bearing and mechanical carbon/ceramic seal
Piggyback mechanical float option available for automatic operation
cCSAus listed

Tech Specs

Brand
Little Giant
Model Number
620222
Weight
57
UPC
010121121577
Type
Effluent Pump
Series
WS Effluent Series
Model
WS100HM-12-20
HP
1
Volts
208-230
Phase
Single
Amps
13.6
Max GPM
140
Discharge
2"
GPM @ 5'
-
GPM @ 10'
-
GPM @ 15'
-
GPM @ 20'
140
GPM @ 40'
115
GPM @ 60'
76
GPM @ 80'
27
Shut Off (ft)
90
Operation
Manual
Hertz
60
Watts
-
Cord (ft)
20
Height (in)
13.75
Length (in)
12.25
Width (in)
9.38
Weight (lbs)
57
