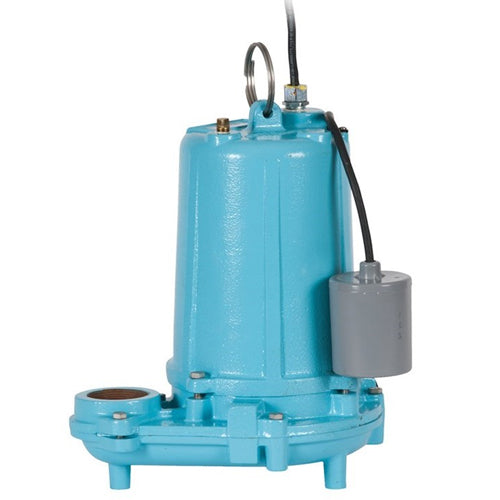

620220 Little Giant WS50HM-12-20 Effluent Pump (1/2 HP, 208-230 Volts, Single Phase, 130 Max GPM)
620220 Little Giant WS50HM-12-20 Effluent Pump (1/2 HP, 208-230 Volts, Single Phase, 130 Max GPM)
[COUNT] shoppers are looking at this right now
SKU:620220
Regular price
$1,507.05 USD
Regular price
$1,773.00 USD
Sale price
$1,507.05 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Little Giant 620220, UPC 010121126305, Type Effluent Pump, Series WS Effluent Series, Model WS50HM-12-20, HP 1/2, Volts 208-230, Phase Single, Amps 9.7, Max GPM 130, Little Giant Effluent Pump
| Applications | |
| Dewatering, water transfer, effl uent and wastewater removal | |
| Features | |
| 1/3 hp, 1/2 hp, or 1 hp oil-filled motor with overload protection | |
| Designed for hi-torque with automatic reset | |
| Cast iron motor and pump housing | |
| Solids handling non-clog impeller | |
| Stainless steel heat treated shaft | |
| Double ball bearing and mechanical carbon/ceramic seal | |
| Piggyback mechanical float option available for automatic operation | |
| cCSAus listed | |
|
Tech Specs |
|
|
Brand
|
Little Giant
|
|
Model Number
|
620220
|
|
Weight
|
56
|
|
UPC
|
010121126305
|
|
Type
|
Effluent Pump
|
|
Series
|
WS Effluent Series
|
|
Model
|
WS50HM-12-20
|
|
HP
|
1/2
|
|
Volts
|
208-230
|
|
Phase
|
Single
|
|
Amps
|
9.7
|
|
Max GPM
|
130
|
|
GPM @ 5'
|
130
|
|
GPM @ 10'
|
115
|
|
GPM @ 15'
|
105
|
|
GPM @ 20'
|
98
|
|
GPM @ 40'
|
-
|
|
GPM @ 60'
|
-
|
|
GPM @ 80'
|
-
|
|
Shut Off (ft)
|
63
|
|
Operation
|
Manual
|
|
Hertz
|
60
|
|
Weight (lbs)
|
56
|
|
Notes
|
See Support Documents
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Support Documents (pdf) |
||||
| WS Effluent Series Effluent Pumps | ||||
