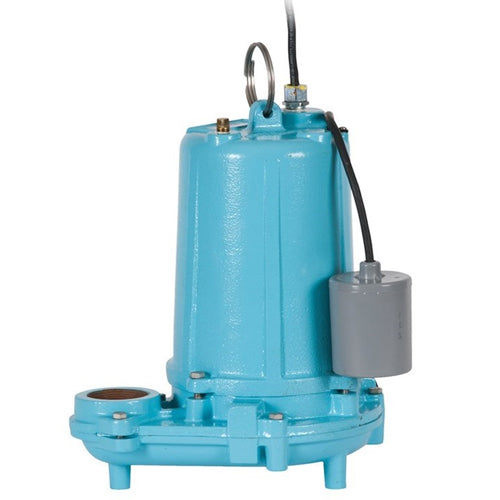

620206 Little Giant WS100HM-34 Effluent Pump (1 HP, 460 Volts, Three Phase, 140 Max GPM)

Little Giant 620206, UPC 010121121454, Type Effluent Pump, Series WS Effluent Series, Model WS100HM-34, HP 1, Volts 460, Phase Three, Amps 3.1, Max GPM 140, Little Giant Effluent Pump

Applications
Dewatering, water transfer, effl uent and wastewater removal
Features
1/3 hp, 1/2 hp, or 1 hp oil-filled motor with overload protection
Designed for hi-torque with automatic reset
Cast iron motor and pump housing
Solids handling non-clog impeller
Stainless steel heat treated shaft
Double ball bearing and mechanical carbon/ceramic seal
Piggyback mechanical float option available for automatic operation
cCSAus listed

Tech Specs
Brand	Little Giant
Model Number	620206
Weight	62
UPC	010121121454
Type	Effluent Pump
Series	WS Effluent Series
Model	WS100HM-34
HP	1
Volts	460
Phase	Three
Amps	3.1
Max GPM	140
GPM @ 5'	-
GPM @ 10'	-
GPM @ 15'	-
GPM @ 20'	140
GPM @ 40'	115
GPM @ 60'	76
GPM @ 80'	27
Shut Off (ft)	90
Operation	Manual
Hertz	60
Watts	-
Cord (ft)	30
Height (in)	13.75
Length (in)	12.25
Width (in)	9.38
Weight (lbs)	62
Notes	See Support Documents

Support Documents (pdf)
WS Effluent Series Effluent Pumps
