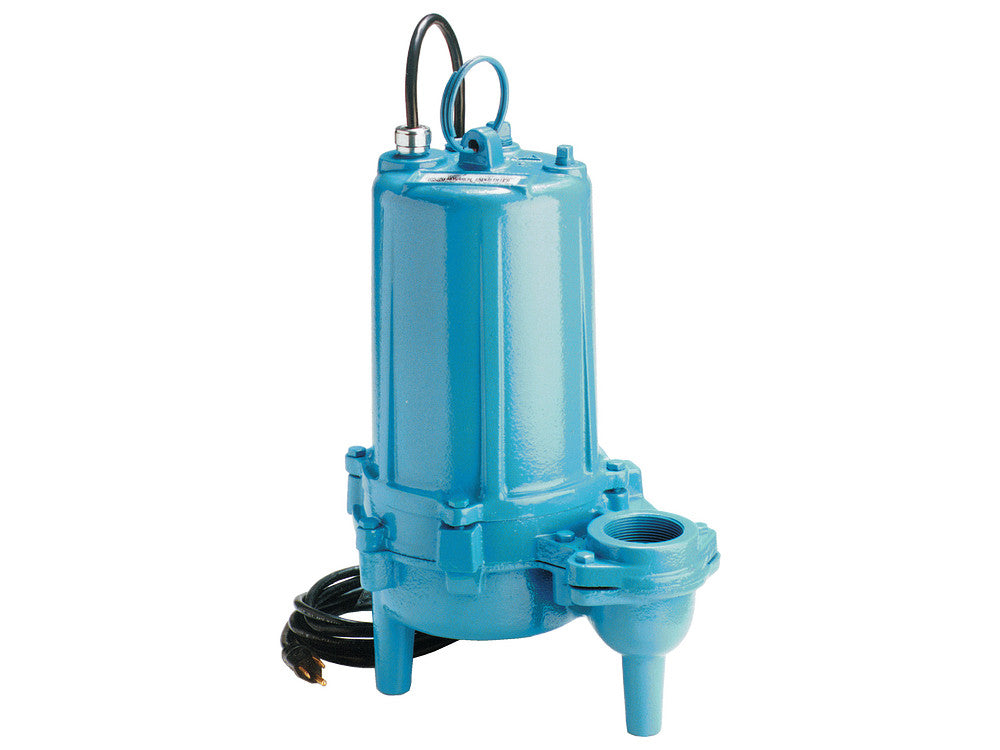

620203 Little Giant WS102M Sewage Pump (1 HP, 208-230 Volts, Single Phase, 168 Max GPM)
620203 Little Giant WS102M Sewage Pump (1 HP, 208-230 Volts, Single Phase, 168 Max GPM)
SKU:620203
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Little Giant 620203, UPC 010121121430, Type Sewage Pump, Series WS Series, Model WS102M, HP 1, Volts 208-230, Phase Single, Amps 9.8/10.7, Max GPM 168, Little Giant Sewage Pump
| Applications | |
| Effluent and sewage waste transfer | |
| Features | |
| 1 hp oil-fi lled motor with double ball bearing capacitor start designed for hi-torque and are thermally protected with automatic reset (single-phase only) | |
| Designed for continuous duty | |
| Cast iron motor housing | |
| Cast iron or thermoplastic motor cover and casing options | |
| 416 stainless steel motor shaft | |
| Switch options for automatic operation | |
| 20' (6 m) power cord | |
| cCSAus listed | |
|
Tech Specs |
|
|
Brand
|
Little Giant
|
|
Model Number
|
620203
|
|
Weight
|
62
|
|
UPC
|
010121121430
|
|
Type
|
Sewage Pump
|
|
Series
|
WS Series
|
|
Model
|
WS102M
|
|
HP
|
1
|
|
Volts
|
208-230
|
|
Phase
|
Single
|
|
Amps
|
9.8/10.7
|
|
Max GPM
|
168
|
|
GPM @ 5'
|
-
|
|
GPM @ 10'
|
168
|
|
GPM @ 15'
|
144
|
|
GPM @ 20'
|
118
|
|
GPM @ 30'
|
84
|
|
GPM @ 40'
|
46
|
|
Shut Off (ft)
|
37
|
|
PSI
|
-
|
|
Operation
|
Manual
|
|
Hertz
|
60
|
|
Cord (ft)
|
20
|
|
Height (in)
|
15.1
|
|
Length (in)
|
12.25
|
|
Width (in)
|
9.38
|
|
Weight (lbs)
|
62
|
|
Notes
|
See Support Documents
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Support Documents (pdf) |
||||
| WS Series Sewage Pumps | ||||
