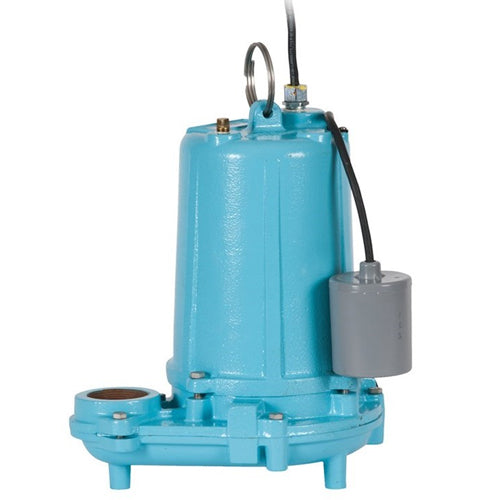

620000 Little Giant WS30AM Effluent Pump (1/3 HP, 115 Volts, Single Phase, 105 Max GPM)

Little Giant 620000, UPC 010121121287, Type Effluent Pump, Series WS Effluent Series, Model WS30AM, HP 1/3, Volts 115, Phase Single, Amps 10.4, Max GPM 105, Little Giant Effluent Pump

Applications
Dewatering, water transfer, effl uent and wastewater removal
Features
1/3 hp, 1/2 hp, or 1 hp oil-filled motor with overload protection
Designed for hi-torque with automatic reset
Cast iron motor and pump housing
Solids handling non-clog impeller
Stainless steel heat treated shaft
Double ball bearing and mechanical carbon/ceramic seal
Piggyback mechanical float option available for automatic operation
cCSAus listed

Tech Specs
Brand	Little Giant
Model Number	620000
Weight	53
UPC	010121121287
Type	Effluent Pump
Series	WS Effluent Series
Model	WS30AM
HP	1/3
Volts	115
Phase	Single
Amps	10.4
Max GPM	105
GPM @ 5'	105
GPM @ 10'	90
GPM @ 15'	70
GPM @ 20'	45
GPM @ 40'	-
GPM @ 60'	-
GPM @ 80'	-
Shut Off (ft)	28
Operation	Piggyback Mechanical Float
Hertz	60
Watts
Cord (ft)	20
Height (in)	13.25
Length (in)	6.48
Width (in)	9.38
Weight (lbs)	53
Notes	See Support Documents

Support Documents (pdf)
WS Effluent Series Effluent Pumps
