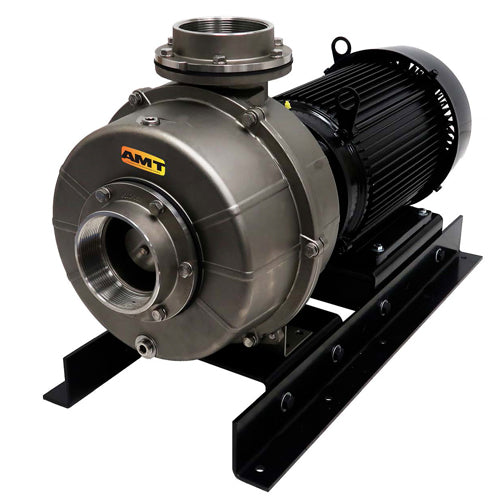

6200-98 AMT Stainless Steel Self-Priming Pumps (5 HP, TEFC, 230-460 Voltage, 3 Phase, 3" Suction, 3" Discharge)
6200-98 AMT Stainless Steel Self-Priming Pumps (5 HP, TEFC, 230-460 Voltage, 3 Phase, 3" Suction, 3" Discharge)
No reviews
SKU:6200-98
Regular price
$3,844.81 USD
Regular price
$5,921.00 USD
Sale price
$3,844.81 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT 6200-98, 3" Self-Priming Stainless Steel Pump Type, 5 HP, TEFC Enclosure, 230-460 Voltage, 3" Suction, 3" Discharge,
| Applications | |
| The AMT Stainless Steel Self-Priming Pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. These units have a stainless steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. Pumps are designed to handle liquids with solids contents up to 1/2 spherical solids for our 3 models and 3/4 spherical solids for our for 4 models. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. | |
| Features | |
| Viton Mechanical Seal, O-Rings and Gaskets. Optional Silicon Carbide Seal Available. | |
| Built-In Viton Flapper/Check Valve Permits Self-Priming up to 20. | |
| Stainless Steel Self-Cleaning Semi- Open Impeller. | |
| Fill & Drain Plugs for Easy Servicing | |
| Semi-Open Impeller with Spherical Solids Handling. | |
| * See Support Documents for pump GPM, TDH and PSI chart. | |
Specifications | |
Brand |
AMT |
Catalog Number |
6200-98 |
Type |
3" Self-Priming Stainless Steel Pump |
Series |
Self-Priming Pumps |
HP |
5 |
| Phase | 3 |
Enclosure |
TEFC |
Frame |
184JM |
Voltage |
230-460 |
Hz |
60 |
Suction |
3" |
Discharge |
3" |
Optional Base (not included) |
A200-90 |
Length |
33 [84] |
Width |
14.1 [35.9] |
Height |
16.1 [40.9] |
Ship Weight (lbs.) |
168 |
Solid Handling Capability |
up to 1/2 |
Construction |
Cast Stainless Steel |
Mechanical Seal Material |
Viton w/Carbon/Carbide Faces |
Max Temp |
200 F |
Notes |
See support documents |
Support Documents (pdf) |
