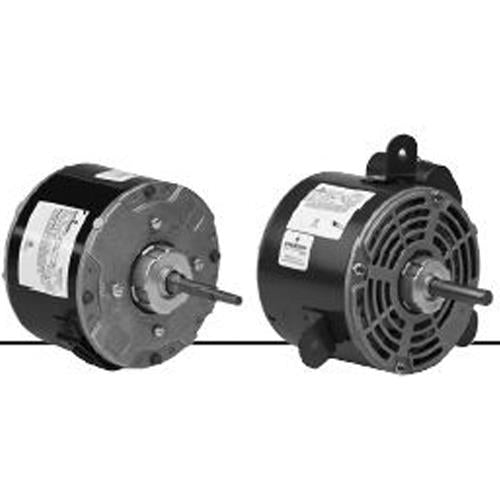

6127 U.S. Motors Refrigeration Condenser Fan Motor (1/3 HP, 230 Volts, 1625 RPM)

Name: 6127 U.S. Motors Refrigeration Condenser Fan Motor (1/3 HP, 230 Volts, 1625 RPM)
Brand: U.S. Motors
SKU: 6127
Price: 238.65 USD
Availability: InStock

SKU:6127

$238.65 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

US Motors Emerson 6127, HP: 1/3, RPM: 1625, Volts: 230, OEM Direct Replacement: Copeland, Mount: Resilient, Type: 5.6" Permanent Split Capacitor,

Applications
Condenser cooling fan motors to meet manufacturer's requirements for commercial refrigeration units.

Features
OEM Direct Replacements	Automatic Reset Thermal Overload Protector
Single Speed	Designed for use with 370V Capacitors

Tech Specs
Brand	U.S. Motors/Emerson
Model Number	6127
HP	1/3
RPM	1625
Volts	230
Bearings	Slv
Amps	2.4
Cap. MFD	4
Shaft N	1.75
Apx. Wt. (lb)	17
Shell XI	5.8
Total C	8.7
OEM Direct Replacement	Copeland
Mount	Resilient
Type	5.6" Permanent Split Capacitor

Support Documents (pdf)
Product Literature

Questions about this product? Contact our team!
Product images may be generic.
