Berkeley Pumps

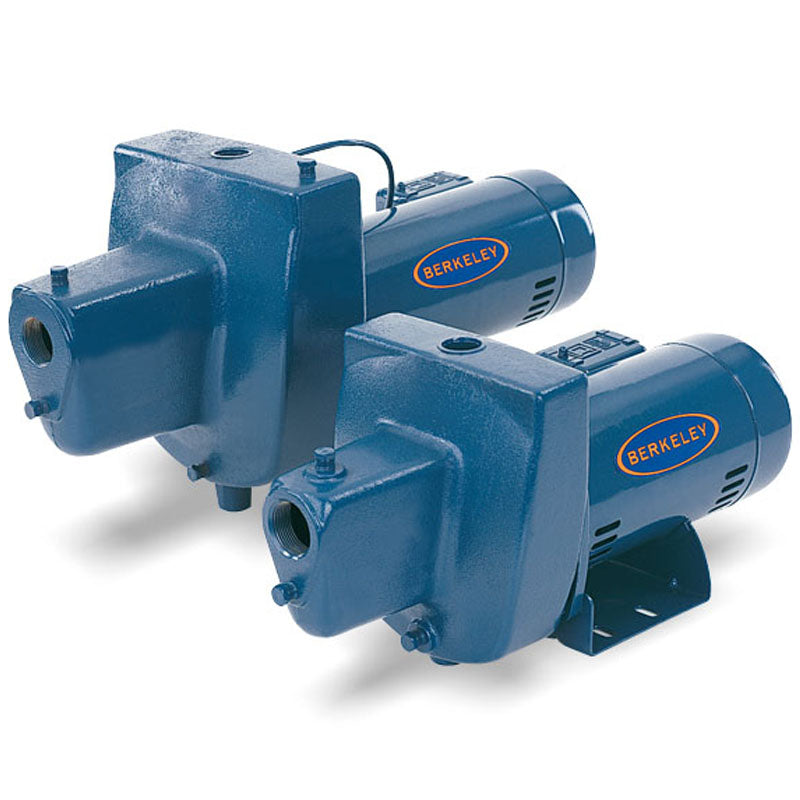

5HN Berkeley HN Series Self-priming Shallow Well Jet Pump (1/2 HP, 1 Phase, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, 30-50 Switch Setting, 140 Degrees Max Temp, Cast Iron Body)
5HN Berkeley HN Series Self-priming Shallow Well Jet Pump (1/2 HP, 1 Phase, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, 30-50 Switch Setting, 140 Degrees Max Temp, Cast Iron Body)
[COUNT] shoppers are looking at this right now
No reviews
SKU:5HN
Regular price
$708.36 USD
Regular price
$1,454.00 USD
Sale price
$708.36 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Berkeley 5HN, Cast iron, self-priming shallow well jet pumps Type, HN Series, 1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, Close-grained cast iron Body,
| Applications |
| The ProJet HN models provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water. APPLICATIONs: Water systems and sprinkling for homes, farms and cottages. |
| Features |
| Quality Construction: Close-grained cast iron body, specially treated for corrosion resistance. Drain port provided for easy winterizing. |
| Built-in Jet: High-strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service. |
| Noryl Impeller: Precision-molded for perfect balance ultra-smooth for highest performance and efficiency. |
| Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. |
| Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication. |
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassure prolonged motor life. |
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced. |
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. |
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment. |
| Pressure Switch: Professional quality, allows cut-in and differential adjustments. |
|
Specifications |
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
5HN
|
|
Type
|
Cast iron, self-priming shallow well jet pumps
|
|
Series
|
HN
|
|
HP
|
1/2
|
|
Switch Setting
|
30-50
|
|
Suction
|
1-1/4"
|
|
Discharge
|
1"
|
|
Voltage
|
115/230
|
|
Max. Inlet Pressure
|
50 PSI
|
|
Body
|
Close-grained cast iron
|
|
Shaft
|
416 grade stainless steel
|
|
Diffuser
|
Reinforced polypropylene
|
|
Impeller
|
Noryl
|
|
Venturi
|
Lexan
|
|
Base
|
Steel, 12 gauge
|
