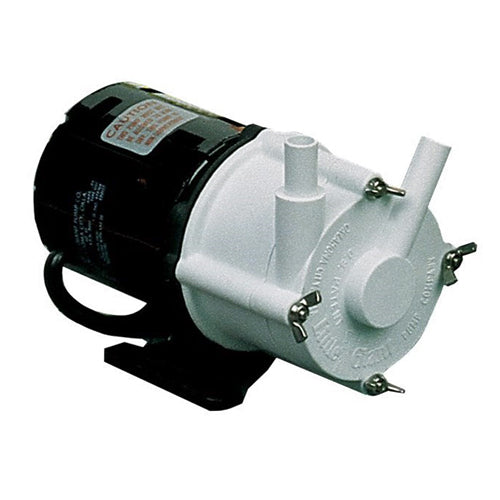

589012 Mody Pumps Magnetic Drive Pump (1-MD Model, 1/70 HP, 230 Volts, 50/60 Hz, 1/2" Hose Inlet, 1/2" Hose Discharge, 6' Cord)
589012 Mody Pumps Magnetic Drive Pump (1-MD Model, 1/70 HP, 230 Volts, 50/60 Hz, 1/2" Hose Inlet, 1/2" Hose Discharge, 6' Cord)
[COUNT] shoppers are looking at this right now
No reviews
SKU:589012
Regular price
$0.00 USD
Regular price
$423.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Mody Pumps 589012, 1-MD Model No., 1/70 HP, 230 Volts,
| Applications | |
| The Little Giant MD series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet A (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump. | |
| Features | |
| Thermally protected, open, fan-cooled motor | |
| Sleeve bearings | |
| 6' power cord with 3-prong plug (no plug on 230V) | |
| Specific gravity to 1.1 | |
| Fluid temperature to 150F | |
| Ambient air temperature to 77F | |
| Volute Glass-filled polypropylene | |
| Housing Glass-filled polypropylene | |
| Impeller Glass-filled polypropylene and ceramagnet A (barium ferrite) | |
| Shaft Titanium | |
| Thrust Washers Titanium, O-Ring Nitrile | |
|
Specifications |
|
|
Brand
|
Mody Pumps
|
|
Catalog Number
|
589012
|
|
Type
|
Magnetic Drive Pump
|
|
Model No.
|
1-MD
|
|
Item No.
|
589012
|
|
Intake Size
|
1/2" Hose
|
|
Discharge Size
|
1/2" Hose
|
|
Listing(s)
|
UR/C-CSA
|
|
HP
|
1/70
|
|
Volts
|
230
|
|
Hertz
|
50/60
|
|
Amps
|
.66/.64
|
|
Watts
|
100
|
|
Shut Feet
|
10.6
|
|
Off PSI
|
4.6
|
|
Power Cord (ft.)
|
6
|
|
Weight (lbs.)
|
6.25
|
