Mody Pumps

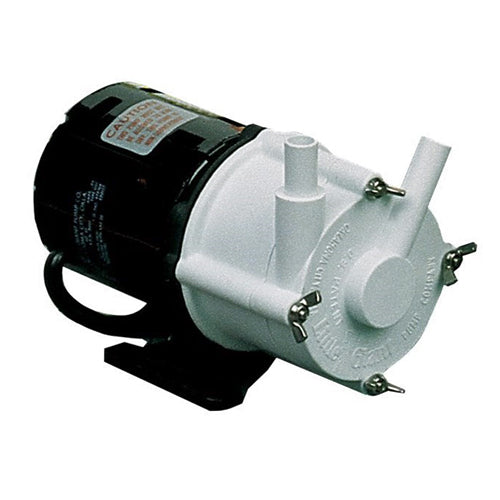

589002 Mody Pumps Magnetic Drive Pump (1/70 HP, 115 Volts, 1-MD Model)
589002 Mody Pumps Magnetic Drive Pump (1/70 HP, 115 Volts, 1-MD Model)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:589002
Regular price
$0.00 USD
Regular price
$367.00 USD
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Mody Pumps 589002, 1-MD Model No., 1/70 HP, 115 Volts,
| Applications | |
| The Little Giant MD series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersible use. Volute and magnet housing are glass-filled polypropylene for excellent chemical resistance. Impeller is glass-filled polypropylene and ceramagnet A (barium ferrite). Shaft and thrust washers are titanium for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump. | |
| Features | |
| Thermally protected, open, fan-cooled motor | |
| Sleeve bearings | |
| 6' power cord with 3-prong plug (no plug on 230V) | |
| Specific gravity to 1.1 | |
| Fluid temperature to 150F | |
| Ambient air temperature to 77F | |
| Volute Glass-filled polypropylene | |
| Housing Glass-filled polypropylene | |
| Impeller Glass-filled polypropylene and ceramagnet A (barium ferrite) | |
| Shaft Titanium | |
| Thrust Washers Titanium, O-Ring Nitrile | |
Specifications | |
Brand |
Mody Pumps |
Catalog Number |
589002 |
Type |
Magnetic Drive Pump |
Model No. |
1-MD |
Item No. |
589002 |
Intake Size |
1/2" Hose |
Discharge Size |
1/2" Hose |
Listing(s) |
UR/C-CSA |
HP |
1/70 |
Volts |
115 |
Hertz |
60 |
Amps |
0.8 |
Watts |
60 |
Shut Feet |
10.6 |
Off PSI |
4.6 |
Power Cord (ft.) |
6 |
Weight (lbs.) |
4 |
Support Documents (pdf) |
