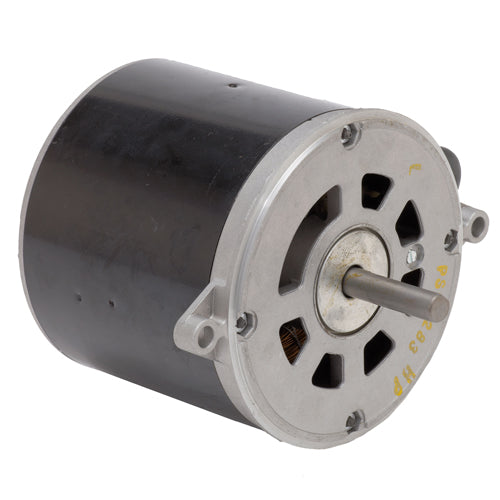

5866 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .3 Amps)

5866 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .3 Amps)

👁️ [COUNT] People are currently viewing this product.

5866

$134.28 USD
$0.00 USD $134.28 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

U.S. Motors 5866, Oil Burner Motor Type, 1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 2 .3 Amps,
Applications
Designed to meet manufacturers requirements for oil burners.
Features
20" Leads, Located At 3 Oclock Viewed From End Opposite Shaft
1.0 Service Factor
Reversible Rotation, Except As Noted
Manual Reset Thermal Overload Protector
56N Frame Has 2 Holes And Screws for Mounting Outlet Box
56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated
Bearings Have All Angle Thrust System
Totally Enclosed When Mounted

Specifications

Brand
U.S. Motors
Catalog Number
5866
Type
Oil Burner Motor
HP
1/7
RPM
3450
Voltage
115
Bearings
Ball
NEMA Frame
48M
Amps
2 .3
Shaft N
2 .0
Protector
Man
Total C
7.2
Ship Wt.
8
Symbol
DS-3HAC
Notes
See Support Documents

Support Documents (pdf)
