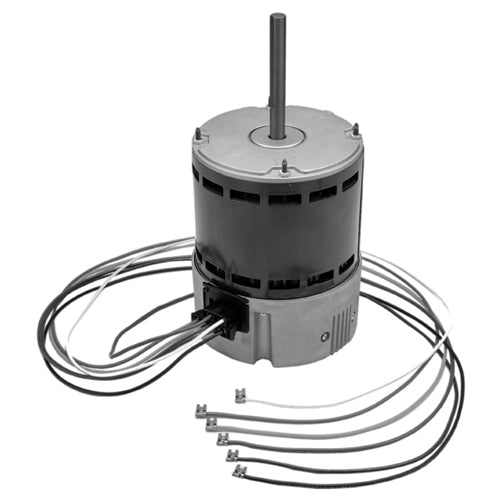

5542ET U.S. Motors High Efficiency Direct Drive Blower Motor (3/4-1/3 HP, 1075 RPM, 115 / 208-230 Voltage)

5542ET U.S. Motors High Efficiency Direct Drive Blower Motor (3/4-1/3 HP, 1075 RPM, 115 / 208-230 Voltage)

[COUNT] shoppers are looking at this right now

5542ET

$404.44 USD
$0.00 USD $404.44 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors 5542ET, HVAC Motors , 3/4-1/3 HP, 1075 RPM, 115 / 208-230 Voltage,
Applications
Drop-in replacement for PSC Direct Drive Commerical and Residential Air Handlers and Furnaces.
Features
Electronically Controlled Brushless Permanent Magnet Motor
40C Ambient Rated
Reversible Rotation
48 Frame (5.6" Diameter)
No Capacitor Required
Electronically Protected Motor
Continuous Duty, Air Over
Ball Bearing
Class B Insulation
36" Leads
50 Hz Capable

Specifications

Brand
U.S. Motors
Catalog Number
5542ET
Type
RESCUE ECOTECH High Efficiency Direct Drive Blower Motor
Series
HVAC Motors
Catalog Number
5542ET
HP
3/4-1/3
RPM
1075
Voltage
115 / 208-230
Recommended Cooling Speed
High (Blk)
Recommended Heating Speed
Med-Hi (YL)
Shaft Dia. x Length
.50 x 4.5"
Shell Length
4.04"
Total Length
11.1"
Ship Wt.
15lbs.
Code
DS-3ECM
Notes
See support documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
