U.S. Motors

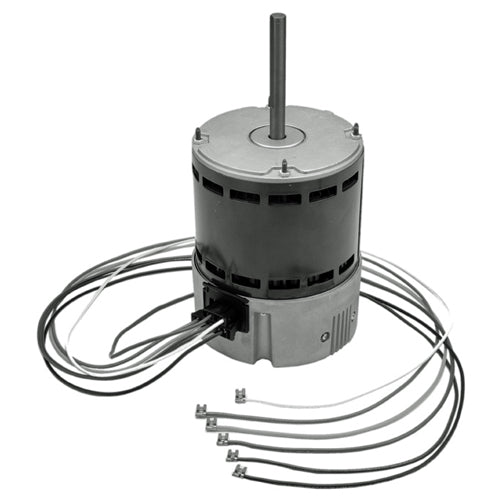

5532ET U.S. Motors High Efficiency Direct Drive Blower Motor (1/2-1/4 HP, 1075 RPM, 115 / 208-230 Voltage)

5532ET U.S. Motors High Efficiency Direct Drive Blower Motor (1/2-1/4 HP, 1075 RPM, 115 / 208-230 Voltage)

5532ET

$540.46 USD
$540.46 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors 5532ET, HVAC Motors , 1/2-1/4 HP, 1075 RPM, 115 / 208-230 Voltage,
Applications
Drop-in replacement for PSC Direct Drive Commerical and Residential Air Handlers and Furnaces.
Features
Electronically Controlled Brushless Permanent Magnet Motor
40C Ambient Rated
Reversible Rotation
48 Frame (5.6" Diameter)
No Capacitor Required
Electronically Protected Motor
Continuous Duty, Air Over
Ball Bearing
Class B Insulation
36" Leads
50 Hz Capable

Specifications

Brand
U.S. Motors
Catalog Number
5532ET
Type
RESCUE ECOTECH High Efficiency Direct Drive Blower Motor
Series
HVAC Motors
Catalog Number
5532ET
HP
1/2-1/4
RPM
1075
Voltage
115 / 208-230
Recommended Cooling Speed
High (Blk)
Recommended Heating Speed
Med-Hi (YL)
Shaft Dia. x Length
.50 x 4.5"
Shell Length
3.66"
Total Length
10.73"
Ship Wt.
10lbs.
Code
DS-3ECM
Notes
See support documents
