U.S. Motors

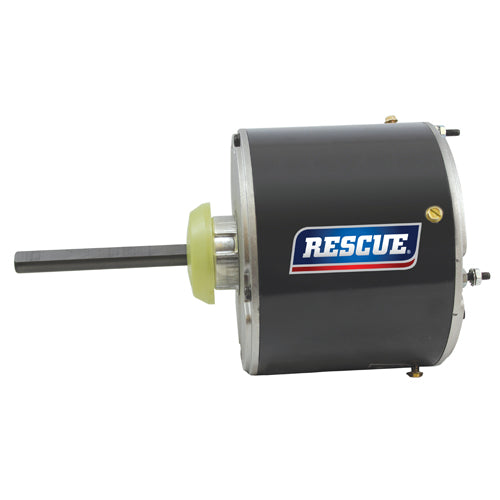

5482H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/4 - 3/4 HP, 208-230 Volts, 1075 RPM)

5482H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/4 - 3/4 HP, 208-230 Volts, 1075 RPM)

5482H

$198.56 USD
$198.56 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson 5482H, HP: 1/4 - 3/4, RPM: 1075, Volts: 208-230, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement
Applications
Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles.
Features
High Ambient Designs 48" Leads
Automatic Reset Thermal Overload Protector Extended Mounting Studs
Designed For Use With 370V Capacitors Ball Bearings
Special Treated Rotor For Corrosion Protection Reversible Rotation
Includes Lead End Mounting Holes For Rheem or Trane Units Continuous Duty, Air Over
High Efficiency Design

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5482H
HP
1/4 - 3/4
RPM
1075
Volts
208-230
Max. Ambient
158F(70C)
Speed Tap (RPM)
High (1115)
Cap. MFD
15-15
Amps
4
Apx. Wt. (lb)
25
Shaft N
5
Shell XI
6.3
Total C
11.875
Enclosure
TEAO
Diameter
5.6"
Type
RESCUE Condenser Fan Motor

Support Documents (pdf)

Product Literature
View full details
