U.S. Motors

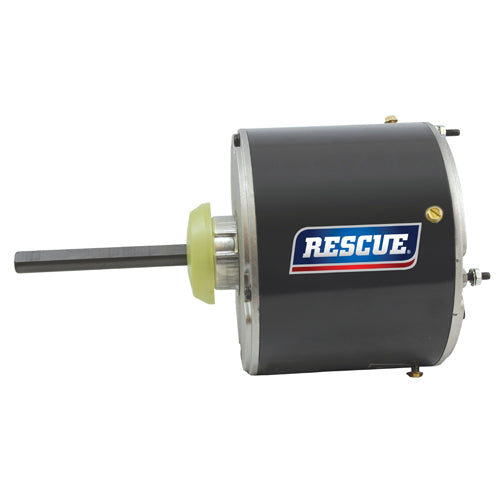

5480H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/2 - 1/6 HP, 460 Volts, 1075 RPM)

5480H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/2 - 1/6 HP, 460 Volts, 1075 RPM)

[COUNT] shoppers are looking at this right now

5480H

$346.07 USD
$0.00 USD $346.07 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 5480H, HP: 1/2 - 1/6, RPM: 1075, Volts: 460, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement

Applications
Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles.
Features
High Ambient Designs 48" Leads
Automatic Reset Thermal Overload Protector Extended Mounting Studs
Designed For Use With 370V Capacitors Ball Bearings
Special Treated Rotor For Corrosion Protection Reversible Rotation
Includes Lead End Mounting Holes For Rheem or Trane Units Continuous Duty, Air Over
High Efficiency Design

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5480H
HP
1/2 - 1/6
RPM
1075
Volts
460
Max. Ambient
158F(70C)
Speed Tap (RPM)
High (1095)
Cap. MFD
10
Amps
1.3
Apx. Wt. (lb)
19
Shaft N
5
Shell XI
5.562
Total C
11.1
Enclosure
TEAO
Diameter
5.6"
Type
RESCUE Condenser Fan Motor

Support Documents (pdf)

Product Literature
