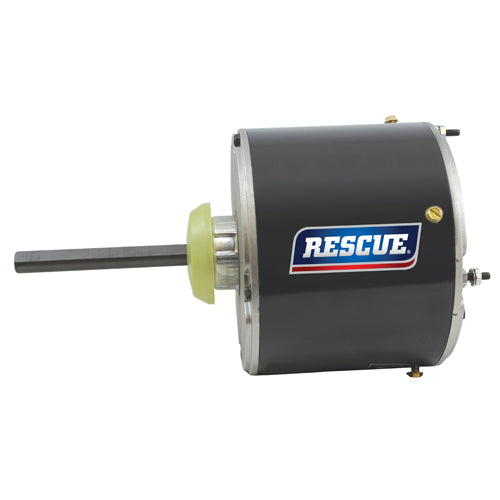

5465H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/2 HP, 208-230 Volts, 1075 RPM)
5465H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/2 HP, 208-230 Volts, 1075 RPM)
SKU:5465H
Regular price
$184.03 USD
Regular price
Sale price
$184.03 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 5465H, HP: 1/6 - 1/2, RPM: 1075, Volts: 208-230, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement
| Applications | |
| Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles. | |
| Features | |
| High Ambient Designs | 48" Leads |
| Automatic Reset Thermal Overload Protector | Extended Mounting Studs |
| Designed For Use With 370V Capacitors | Ball Bearings |
| Special Treated Rotor For Corrosion Protection | Reversible Rotation |
| Includes Lead End Mounting Holes For Rheem or Trane Units | Continuous Duty, Air Over |
| High Efficiency Design | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
5465H |
HP |
1/6 - 1/2 |
RPM |
1075 |
Volts |
208-230 |
Max. Ambient |
158F(70C) |
Speed Tap (RPM) |
High (1110) |
Cap. MFD |
12.5-10 |
Amps |
3 |
Apx. Wt. (lb) |
25 |
Shaft N |
5 |
Shell XI |
5.3 |
Total C |
10.3 |
Enclosure |
TEAO |
Diameter |
5.6" |
Type |
RESCUE Condenser Fan Motor |
