U.S. Motors

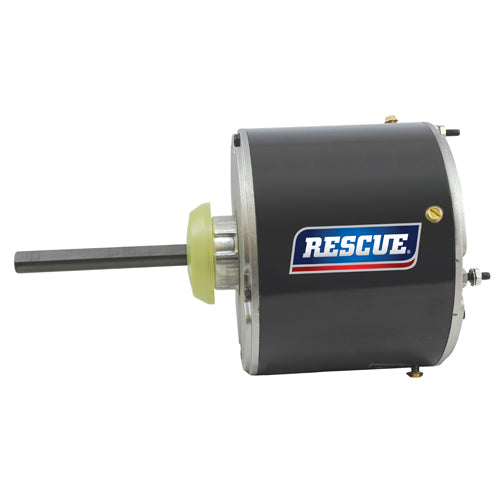

5464H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/3 HP, 208-230 Volts, 825 RPM)

5464H U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/3 HP, 208-230 Volts, 825 RPM)

[COUNT] shoppers are looking at this right now

5464H

$207.37 USD
$0.00 USD $207.37 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

US Motors Emerson 5464H, HP: 1/6 - 1/3, RPM: 825, Volts: 208-230, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement
Applications
Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles.
Features
High Ambient Designs 48" Leads
Automatic Reset Thermal Overload Protector Extended Mounting Studs
Designed For Use With 370V Capacitors Ball Bearings
Special Treated Rotor For Corrosion Protection Reversible Rotation
Includes Lead End Mounting Holes For Rheem or Trane Units Continuous Duty, Air Over
High Efficiency Design

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5464H
HP
1/6 - 1/3
RPM
825
Volts
208-230
Max. Ambient
158F(70C)
Speed Tap (RPM)
High (825)
Cap. MFD
10-7.5
Amps
1.9
Apx. Wt. (lb)
18
Shaft N
5
Shell XI
5.3
Total C
10.3
Enclosure
TEAO
Diameter
5.6"
Type
RESCUE Condenser Fan Motor

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
