U.S. Motors

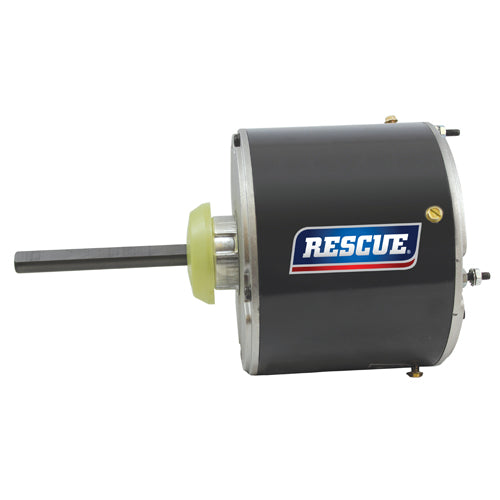

5464 U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/3 HP, 208-230 Volts, 825 RPM)

5464 U.S. Motors RESCUE Permanent Split Cap. Condenser Fan Motor (1/6 - 1/3 HP, 208-230 Volts, 825 RPM)

[COUNT] shoppers are looking at this right now

5464

$201.59 USD
$0.00 USD $201.59 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 5464, HP: 1/6 - 1/3, RPM: 825, Volts: 208-230, Enclosure: TEAO, Diameter: 5.6", High Efficiency HVAC Motor, Trane & Rheem Replacement
Applications
Commercial and Residential Condensing Units. Includes Lead End Mounting Holes For Rheem or Trane Units. Can replace a range of horsepower application and a variety of mounting styles.
Features
High Ambient Designs 48" Leads
Automatic Reset Thermal Overload Protector Extended Mounting Studs
Designed For Use With 370V Capacitors Ball Bearings
Special Treated Rotor For Corrosion Protection Reversible Rotation
Includes Lead End Mounting Holes For Rheem or Trane Units Continuous Duty, Air Over
High Efficiency Design

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5464
HP
1/6 - 1/3
RPM
825
Volts
208-230
Max. Ambient
140F(60C)
Speed Tap (RPM)
High (825)
Cap. MFD
10-7.5
Amps
1.9
Apx. Wt. (lb)
18
Shaft N
5
Shell XI
5.3
Total C
10.3
Enclosure
TEAO
Diameter
5.6"
Type
RESCUE Condenser Fan Motor

Support Documents (pdf)

Product Literature
  • Many products sold by KG Power Systems are shipped directly from the manufacturer. Returns, cancellations, and refunds are subject to manufacturer approval.
  • Availability is subject to change based on current inventory.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
