U.S. Motors

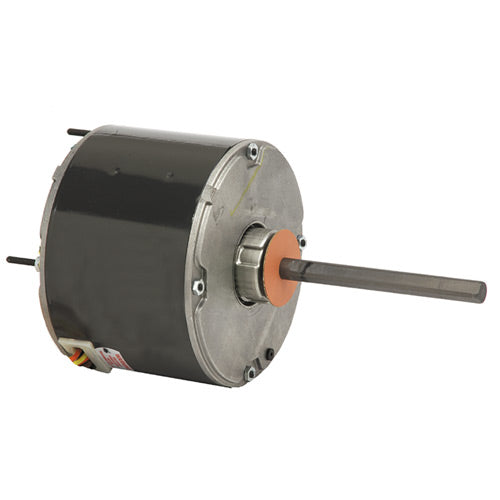

5454 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/5 HP, 208-230 Volts, 1075 RPM)

5454 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/5 HP, 208-230 Volts, 1075 RPM)

👁️ [COUNT] People are currently viewing this product.

5454

$183.85 USD
$0.00 USD $183.85 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

US Motors Emerson 5454, HP: 1/5, RPM: 1075, Volts: 208-230, OEM Direct Replacement: Rheem, Diameter: 5.6", Enclosure: TEAO,
Applications
Residential and commercial condensing unit fan motors to meet manufacturer's requirements.
Features
140F (60C) Ambient Design Hubless Lead End
Sleeve Bearings have All Angle Thrust System Drain Holes Both Ends
Class B Insulation Reversible Rotation
Designed for use with 370V Capacitors Automatic Reset Thermal Overload Protector
Extended Studs Continuous Duty
30" Leads

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5454
HP
1/5
RPM
1075
Volts
208-230
Bearings
Slv
Amps
1.7
Cap. MFD
3
Shaft N
3.7
Apx. Wt. (lb)
11
Shell XI
3.8
Total C
8.1
OEM Direct Replacement
Rheem
Diameter
5.6"
Enclosure
TEAO
Type
Permanent Split Capacitor Condenser Fan Motor

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
